| Engine Type : | 55 HP, John Deere 3029H engine, 2400 RPM, 3 Cylinders, Inline FIP, Coolant cooled with overflow reservoir, Turbo charged |
|---|---|
| Engine Rated RPM : | 2400 |
| Engine HP : | 55 |
| Cooling System : | Coolant Cooled |
| Fuel Type : | Diesel |
| No. of Cylinder : | 3 |
| Air Cleaner / Filter : | Dry type, Dual element |
| Linkage Category : | Category-II |
|---|---|
| Speed Forward - kmph : | 2.05 - 28.8 |
| Speed Reverse - kmph : | 3.45 - 22.33 |
| No. of gears Forward : | 9 |
| No. of gears Reverse : | 3 |
| Gear Box Type : | Collarshift |
| Brakes Type : | Self adjusting and self equalising Hydraulically actuated, Oil immersed disc brake |
| Clutch Type : | Dual |
| P.T.O. Type : | Independent, 6 Spline |
|---|---|
| PTO RPM : | 540@2376 ERPM |
| Steering Type : | Power |
|---|
| Lifting Capacity at Standard Frame : | 2000 kgf |
|---|---|
| 3 Point Linkage : | Category-II Automatic Depth and Draft Control Selective Control Valve (SCV) |
| Total Weight : | 2410 Kg |
|---|---|
| Wheel Base : | 2050 mm |
| Overall Length : | 3580 mm |
| Overall Width : | 1875 mm |
| Drive : | 4 WD |
|---|---|
| Front Tyre : | 9.5 x 24, 8 PR |
| Rear Tyre : | 16.9 x 28, 12 PR |
| Battery Capacity : | 88 Ah 12V |
|---|---|
| Starter Motor : | 12 V, 2.5 kW |
| Alternator : | 43 Amp |
| Optional Accessories : | Ballast Weights, Canopy, Canopy holder, Draw Bar, Wagon hitch |
|---|

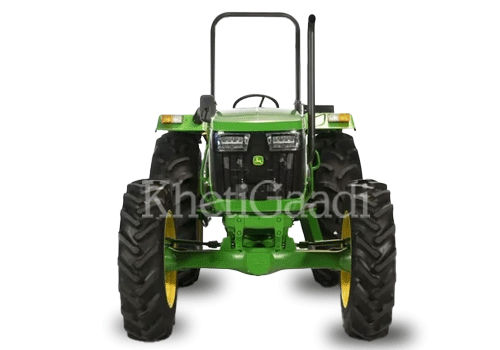

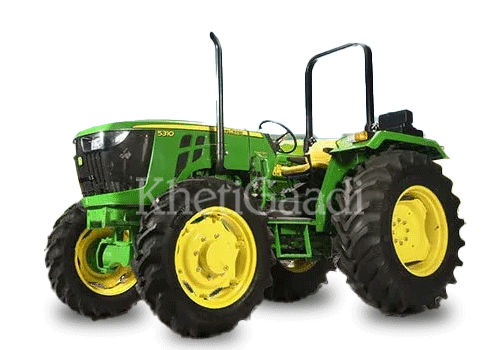

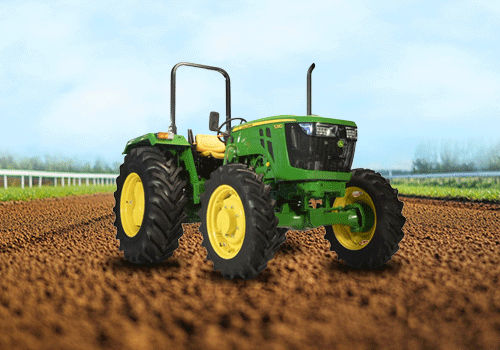

About John Deere 5310 4WD
