Farmtrac

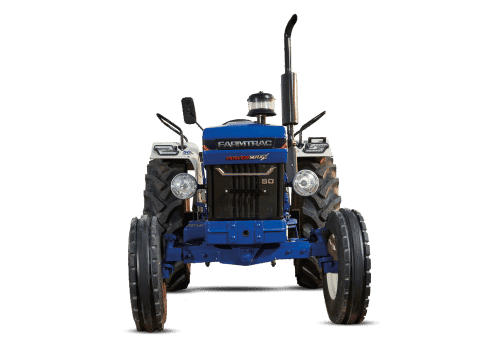

FARMTRAC 60 POWERMAXX 4WD
FARMTRAC 60 POWERMAXX 4WD
55 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2000 RPM | ||||
| HP Category | 55 HP | ||||
| Displacement CC in | 3510 CC | ||||
| No. of cylinder | 3 Cylinder | ||||
| Fuel type | Diesel | ||||
| Hydraulics | 2500 | ||||
| Transmission | |||||
| Transmission type | Constant Mesh | ||||
| No. of gears Forward | 8 Forward | ||||
| No. of gears Reverse | 2 Reverse | ||||
| Speed Forward - kmph | 2.4 - 31.2 Kmph | ||||
| Speed Reverse - kmph | 3.6 - 13.8 Kmph | ||||
| Brakes type | Multi Plate Oil Immersed Brakes | ||||
| clutch type | Independent Clutch/ Dual Clutch | ||||
| Gear Box Type | 16F+4R (T20) | ||||
| Front Axle | Indegenous 4WD | ||||
| Rear Axle | Epicyclic Reduction | ||||
| Power Take Off | |||||
| Max PTO (HP) | 49 HP | ||||
| PTO RPM @ engine, rpm | 1810 RPM | ||||
| PTO Type | 540 and Multi Speed Reverse PTO | ||||
| Steering | |||||
| Steering type | Balanced Power Steering | ||||
| Hydraulic | |||||
| Lifting Capacity Max. | 2500 Kg | ||||
| Spool Valve | Double Acting Spool valve | ||||
| Type | Live, ADDC | ||||
| Dimensions & Weight | |||||
| Ground Clearance | 340 Nm | ||||
| Total Weight | 2850(Unballasted) Kg | ||||
| Turning radius Without Brake | 4300 mm | ||||
| Overall Length | 3865 mm | ||||
| Overall Width | 1920 mm | ||||
| Wheel Base | 2150 mm | ||||
| Wheels & Tyres | |||||
| Tyre Size Front | 9.5 X 24 | ||||
| Tyre Size Rear | 16.9 X 28 | ||||
| Electrical | |||||
| Others | |||||
