| Engine Type : | FPT S8000 Series |
|---|---|
| Engine Rated RPM : | 2300 |
| Engine HP : | 55 |
| Displacement CC : | 2931 |
| Bore in (mm) : | 104 / 115 |
| Stroke in (mm) : | 104 / 115 |
| Fuel Type : | Diesel |
| No. of Cylinder : | 3 |
| Torque : | 212 @ 1200 |
| Air Cleaner / Filter : | Dry Air |
| Transmission Type : | Fully Constant mesh / Partial Synchro mesh |
|---|---|
| Max Speed : | 33.74 |
| Speed Reverse - kmph : | 14.5 |
| Power Take Off (P.T.O rpm) : | 540 |
| No. of gears Forward : | 8 |
| No. of gears Reverse : | 2 |
| Brakes Type : | Mechanically Actuated Oil Immersed Multi Disc Brakes |
| Clutch Type : | Double Clutch with Independent Clutch Lever |
| PTO RPM : | 540 |
|---|
| Steering Type : | Power Steering |
|---|
| Lifting Capacity at Standard Frame : | 1700 Kg / 2000 Kg* with Assist RAM |
|---|
| Total Weight : | 2220 Kg |
|---|---|
| Wheel Base : | 2040 mm |
| Overall Length : | 3490 mm |
| Overall Width : | 1930 mm |
| Ground Clearance : | 480 mm |
| Drive : | 2WD |
|---|---|
| Front Tyre : | 7.50x16 / 9.5x24 |
| Rear Tyre : | 14.9x28 / 16.9x28 |
| Battery Capacity : | 100 Ah |
|---|---|
| Alternator : | 55 Amp |
| Website : | http://www.newhollandindia.co.in |
|---|

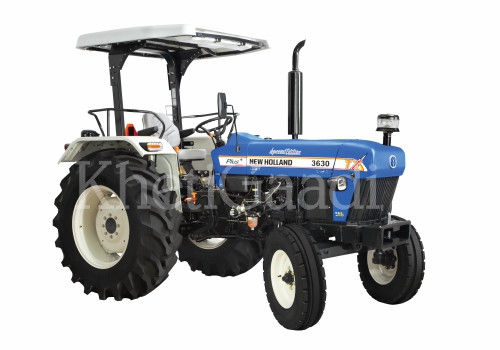

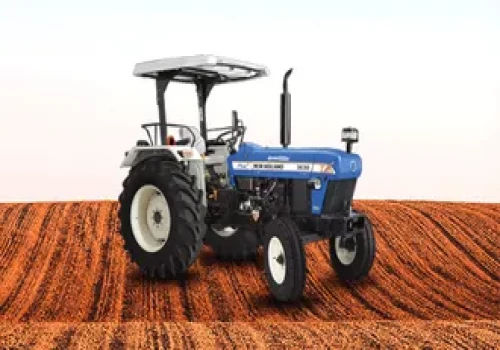

About New Holland 3630 Tx Special Edition
