John Deere 5310 4WD and Trakstar Hindustan 60
John Deere 5310 4WD
55 HP
11.11 Lakh - 11.65 Lakh
|

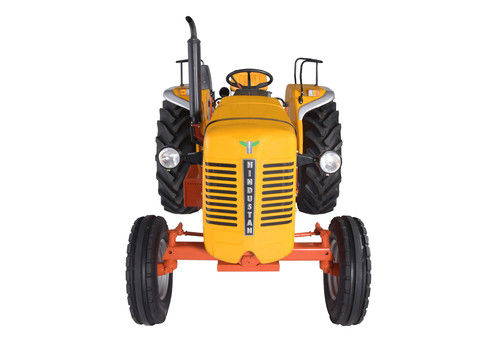

Trakstar Hindustan 60
55 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | 55 HP (41 KW), 2400 RPM, 3 Cylinders, Direct Injection, Turbo Charged, Inline FIP, Coolant Cooled With Overflow Reservoir | water-cooled diesel engine | |||
| Engine rated RPM | 2400 RPM | 2100 RPM RPM | |||
| HP Category | 55 HP | 50 HP HP | |||
| Displacement CC in | N/A | 3054 CC | |||
| No. of cylinder | 3 Cylinder | 4 Cylinder | |||
| Max Torque - Nm | N/A | 188 NM Nm | |||
| Air Cleaner / Filter | Dry Type, Dual Element | Housing, Water | |||
| Cooling System | Coolant Cooled | Water-Cooled / Liquid-Cooled | |||
| Emission standard | N/A | 8.5 Litres | |||
| Fuel type | Diesel | 50 Litres | |||
| Fuel Pump Capacity | N/A | 50 Litres Lit | |||
| Height | N/A | 2180 mm mm | |||
| Starter Motor | 2.5 | 12V DC | |||
| Accessories | Ballast Weight, Canopy, Canopy Holder, Drawbar, Wagon Hitch, Tow Hook | N/A | |||
| Shifting Type | N/A | Gear Box Layout: 8 Forward + 2 Reverse gears. | |||
| Hydraulics | N/A | 1600 kg to 1800 kg | |||
| Transmission | |||||
| Transmission type | Collarshift | Constant Mesh | |||
| No. of gears Forward | 9 Forward | 8 Forward | |||
| No. of gears Reverse | 3 Reverse | 2 Reverse | |||
| Speed Forward - kmph | 2.05 - 28.8 Kmph | 2.9 -32.3 kmph Kmph | |||
| Speed Reverse - kmph | 3.45 - 22.33 Kmph | 4.8-13.9 kmph Kmph | |||
| Brakes type | Oil Immersed Disc Brakes | Oil-immersed brakes | |||
| clutch type | Dual Clutch | Dual clutch | |||
| Gear Box Type | 9 Forward + 3 Reverse, Collarshift | N/A | |||
| Power Take Off | |||||
| Max PTO (HP) | 46.7 HP | 46 HP HP | |||
| PTO RPM @ engine, rpm | 540@2376 RPM | 540 PTO RPM RPM | |||
| PTO Type | Independent, 6 Spline | 44.8 HP | |||
| PTO Speed | N/A | 540 RPM | |||
| Steering | |||||
| Steering type | Power Steering | Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 2000 Kg | 1600 Kg Kg | |||
| 3 Point Linkage | Category II,Automatic Depth & Draft Control | Position & Draft Control leaver | |||
| Spool Valve | N/A | 2325 Kg | |||
| Dimensions & Weight | |||||
| Total Weight | 2410 Kg | 2325 Kg Kg | |||
| Overall Length | 3580 mm | 3560 MM mm | |||
| Overall Width | 1875 mm | 1995 MM mm | |||
| Wheel Base | 2050 mm | 2200 MM mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 9.5 x 24 , 8 | N/A | |||
| Tyre Size Rear | 16.9 x 28 , 12 | N/A | |||
| Wheel Track Front | N/A | 7.50 x 16 | |||
| Wheel Track Rear | N/A | 16.9 x 28 | |||
| Electrical | |||||
| Battery Capacity | N/A | 12 V 100 Ah AH | |||
| Alternator | 43 Amp | N/A | |||
| Battery Type | N/A | 12 V 100 Ah | |||
