| Engine Type : | Kubota V2403-M-DI-E3, Inline FIP, 4 Cylinder, Liquid Cooled |
|---|---|
| Engine Rated RPM : | 2500 |
| Engine HP : | 45 |
| Displacement CC : | 2434 |
| Cooling System : | liquid cooled |
| No. of Cylinder : | 4 |
| Air Cleaner / Filter : | Dry Type, Dual Element |
| Transmission Type : | Syschromesh Transmission |
|---|---|
| Speed Forward - kmph : | min 3.0 – Max 30.8 |
| Speed Reverse - kmph : | min 3.9 – Max 13.8 |
| No. of gears Forward : | 8 |
| No. of gears Reverse : | 4 |
| Brakes Type : | Oil immersed Disc Brakes |
| Clutch Type : | Double Clutch |
| P.T.O. Type : | Independent, Dual PTO |
|---|---|
| PTO RPM : | STD : 540 @2484 ERPM ECO : 750 @2481 ERPM |
| Steering Type : | Hydraulic Double acting power steering |
|---|
| Lifting Capacity at Standard Frame : | 1640 kgf |
|---|
| Total Weight : | 1970 Kg |
|---|---|
| Wheel Base : | 1990 mm |
| Overall Length : | 3110 mm |
| Overall Width : | 1870 mm |
| Ground Clearance : | 365 mm |
| Turning Radius of Brakes : | 2.90 |
| Turning Radius w. o. Brakes : | 40 Amp |
| Drive : | 4WD |
|---|---|
| Front Tyre : | 8 x 18 |
| Rear Tyre : | 13.6 x 28 |
| Battery Capacity : | 12 Volt |
|---|---|
| Starter Motor : | 12 Volt |
| Alternator : | 40 Amp |
| Electrical System : | 12 Volt, 40 Amp |

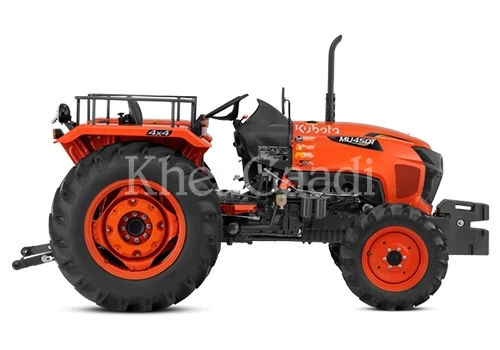

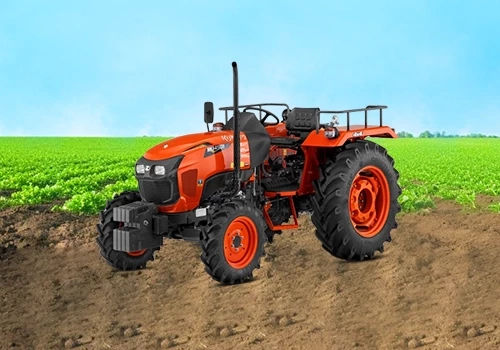

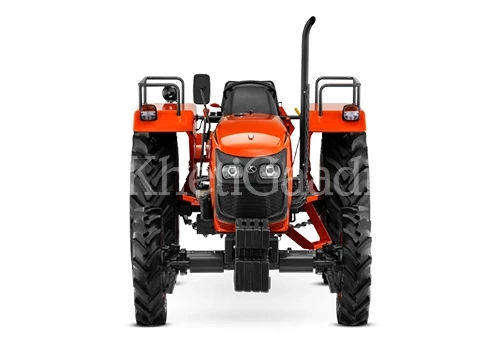

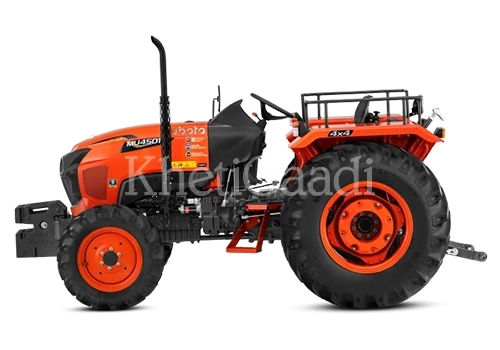

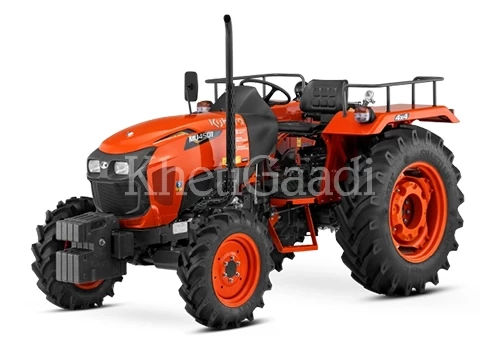

About Kubota MU4501 4WD
Ward No. -12, Main Road, Gunderdehi ,Balod ,Chhattisgarh ,491223
Charphatak,Station Road,Chhindwara ,Chhindwara ,Madhya Pradesh ,480001
1st Floor, Shop No:9,"B" Block Parvaz Plaza Building, College Road, Hospet ,Bellary ,Karnataka ,583201
No.90 /10-11, New Market Yard, Opposite: Sardar Bank ,Patan ,Gujarat ,384265
AT / P.O. Pipili, PS Pipili Puri District ,Nayagarh ,Orissa ,752104
AT / P.O. Pipili, PS Pipili Puri District ,Puri ,Orissa
No.5C /11, Trivandrum Road, Vannarpettai ,Tirunelveli ,Tamil Nadu ,627003
Sagar Road ,Chhatarpur ,Madhya Pradesh ,471001
Vasant nagar,Opp. Nandanvan hotel,Dondaicha road,Shahada ,Nandurbar ,Maharashtra ,425409
Survey No. 436, Plort no. 65, Industrial Park, Kakuturu, Venkatachalam,Nellore Andhra Pradesh ,Nellore ,Andhra Pradesh ,524142
Quad Piston ring which reduces friction and ultimately improves fuel efficiency
smooth engaging of the gears when shifting
Easy get in & Get down without any interference
Less Vibration & Low Noise
changing of forward & backward direction is made easy
Improves Operator Comfort
