| Engine Type : | 3 Cylinders, 55 HP, John Deere 3029H engine, 2400 RPM, Turbo charged |
|---|---|
| Engine Rated RPM : | 2400 |
| Engine HP : | 55 |
| Cooling System : | Coolant cooled with overflow reservoir |
| Fuel Type : | Diesel |
| Fuel Pump : | Inline FIP |
| No. of Cylinder : | 3 |
| Air Cleaner / Filter : | Dry type, Dual element |
| Transmission Type : | 9 Forward + 3 Reverse, Collarshift /12 Forward + 12 Reverse PR transmission with Top shaft Synchromesh |
|---|---|
| Speed Forward - kmph : | 2.05 - 28.8 |
| Speed Reverse - kmph : | 3.45 - 22.33 |
| No. of gears Forward : | 9 |
| No. of gears Reverse : | 3 |
| Gear Box Type : | Top shaft Synchromesh |
| Front Axel : | Adjustable |
| Brakes Type : | Oil immersed disc brakes, Self adjusting, self equalizing, hydraulically actuated |
| Clutch Type : | Dual Dry / Wet Clutch |
| P.T.O. Type : | Electro-hydraulic wet clutch dual, Independent, 6 Splines |
|---|---|
| PTO RPM : | 540 |
| Steering Type : | Fixed column - Power |
|---|
| Lifting Capacity at Standard Frame : | 2000 kgf at lower link ends |
|---|---|
| 3 Point Linkage : | Category II Automatic depth and draft control |
| Total Weight : | 2250 Kg |
|---|---|
| Wheel Base : | 2050 mm |
| Overall Length : | 3530 mm |
| Overall Width : | 1850 mm |
| Ground Clearance : | 435 mm |
| Turning Radius of Brakes : | 3150 mm |
| Drive : | 2WD |
|---|---|
| Front Tyre : | 9.5 x 24, 8 PR |
| Rear Tyre : | 16.9 x 28, 12 PR |
| Battery Capacity : | 85 Ah, 12 V |
|---|---|
| Starter Motor : | 2.5 kW |
| Alternator : | 40 Amp |
| Website : | www.deere.co.in |
|---|---|
| Optional Accessories : | Ballast Weight, Canopy, Canopy Holder, Drawbar, Wagon Hitch, Tow Hook |

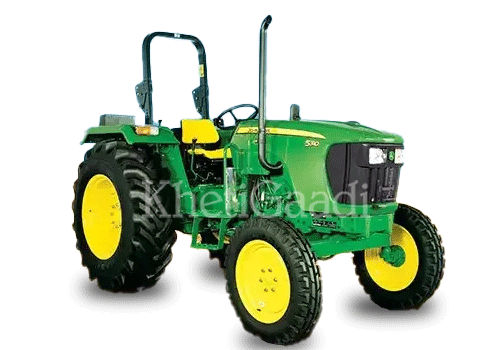

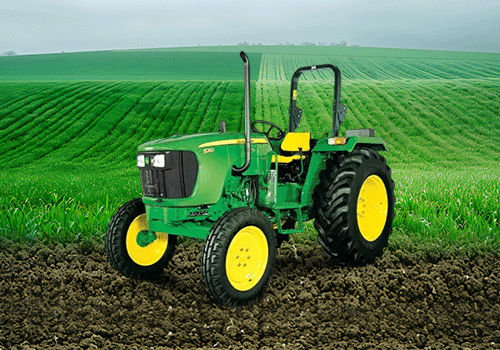

About John Deere 5310
