Farmtrac

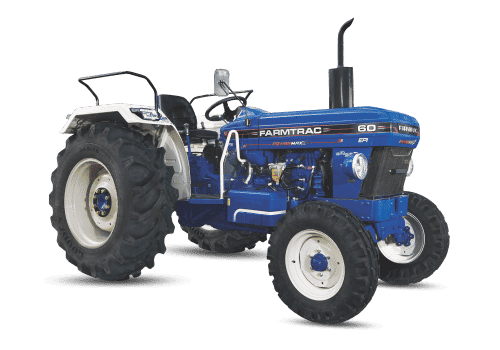

FARMTRAC 60 POWERMAXX
FARMTRAC 60 POWERMAXX
55 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2000 RPM | ||||
| HP Category | 55 HP | ||||
| Displacement CC in | 3510 CC | ||||
| No. of cylinder | 3 Cylinder | ||||
| Fuel type | Diesel | ||||
| Bore in (mm) | Bore in (mm) mm | ||||
| Starter Motor | 14.9 x 28/16.9 x 28 | ||||
| Hydraulics | 2500 | ||||
| Transmission | |||||
| Transmission type | Constant Mesh | ||||
| No. of gears Forward | 16 Forward | ||||
| No. of gears Reverse | 4 Reverse | ||||
| Speed Forward - kmph | 2.4 - 34.8 Kmph | ||||
| Speed Reverse - kmph | 3.5 - 15.8 Kmph | ||||
| Brakes type | Oil Immersed Brakes | ||||
| clutch type | Dual/Independent Clutch | ||||
| Gear Box Type | 16 Forward + 4 Reverse | ||||
| Front Axle | Adjustable Front Axle | ||||
| Power Take Off | |||||
| Max PTO (HP) | 49 HP | ||||
| PTO Type | 540 & MRPTO | ||||
| Steering | |||||
| Steering type | Balanced Power Steering | ||||
| Hydraulic | |||||
| Lifting Capacity Max. | 2500 Kg | ||||
| Type | Live, ADDC | ||||
| Dimensions & Weight | |||||
| Ground Clearance | 390 Nm | ||||
| Total Weight | 2280 Kg | ||||
| Turning radius With Brake | 6500 Nm | ||||
| Overall Length | 3445 mm | ||||
| Overall Width | 1845 mm | ||||
| Wheel Base | 2090 mm | ||||
| Wheels & Tyres | |||||
| Tyre Size Rear | 7.5 x 16 | ||||
| Electrical | |||||
| Others | |||||
