|Engine Type :||3 Cylinders, 60 HP, 2400 RPM, Rotary FIP, Coolant cooled with overflow reservoir, Turbo charged|
|Engine Rated RPM :||2400|
|Engine HP :||60|
|Cooling System :||Coolant cooled with overflow reservoir|
|Fuel Type :||Diesel|
|Fuel Pump :||Rotary FIP|
|No. of Cylinder :||3|
|Air Cleaner / Filter :||Dry type, Dual element|
|Transmission Type :||9 Forward + 3 Reverse speed, Collarshift|
|Speed Reverse - kmph :||36.8|
|Power Take Off (P.T.O rpm) :||540|
|No. of gears Forward :||9|
|No. of gears Reverse :||3|
|Gear Box Type :||Top Shaft Synchromesh/Collar shift|
|Front Axel :||Adjustable|
|Brakes Type :||Oil immersed disc brakes, Self adjusting, self equalizing, hydraulically actuated|
|Clutch Type :||Dual|
|Max P.T.O.(HP) :||52.7|
|P.T.O. Type :||Independent, 6 Splines|
|PTO RPM :||540|
|Steering Type :||Power|
|Lifting Capacity at Standard Frame :||1800 kgf at lower link ends|
|3 Point Linkage :||Category II Automatic Depth & Draft Control|
|Total Weight :||2130 Kg|
|Wheel Base :||2050 mm|
|Overall Length :||3540 mm|
|Overall Width :||1885 mm|
|Ground Clearance :||470 mm|
|Turning Radius of Brakes :||3181 mm|
|Battery Capacity :||88 Ah, 12 V|
|Starter Motor :||2.5 kW|
|Alternator :||40 Amp|
|Optional Accessories :||Ballast Weight, Canopy, Canopy Holder, Tow Hook, Wagon Hitch, Drawbar|

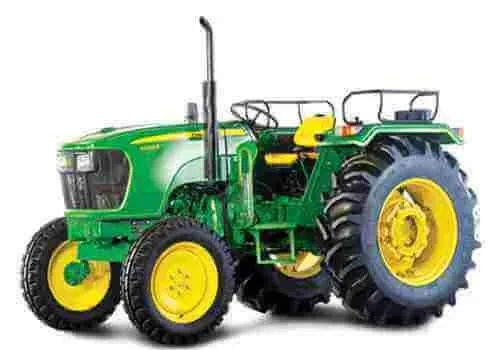

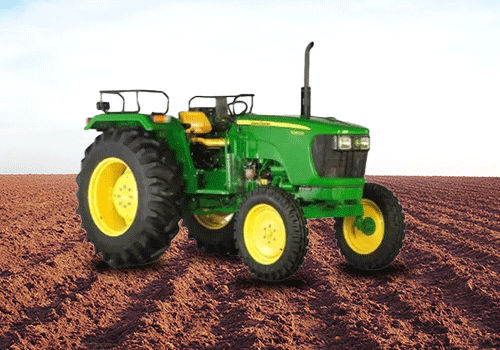

About John Deere 5060E
Village Kothi Chowk (Near Vyas Hospital) P.O. Chandpur, Tehsil Sadar, Dist. Bilaspur ,Bilaspur ,Chhattisgarh ,174004
Near Bus Stand, C.K.Road, District Medinipore Chandrakona Road ,Bhadrak ,Orissa
Pakhi Bagan P.O Abash ,Midnapore ,West Bengal ,721102
Inda O.T. Road District-Paschi, Medinipore ,Kharagpur ,West Bengal ,721805
Kulibazar, Belda ,Paschim Medinipur ,West Bengal ,721424
Opposite Grain Mandi Mandi Road, Alanpur ,Sawai Madhopur ,Rajasthan ,322001
Chapar Colony Khandar-Sawai madhopur Road, Khandar ,Sawai Madhopur ,Rajasthan ,322033
Plot No.:8,Rs No-138,Apmc Road ,Gokak ,Karnataka ,591307
Door No. 3/626, Shop No.1, P.K.M Complex M.M. Nagar, Nh-7 Road, Palayam Kottai ,Tirunelveli ,Tamil Nadu ,627151
No.:10/34, Main Road, Thovalai ,Kanyakumari ,Tamil Nadu
Operators can expect sure stops when the unexpected happens in the field, on the highway, or at home with hydraulic wet-disk brakes.
The tiltable steering column provides multiple positions to adjust the steering wheel. The operator can choose the most comfortable driving position, thus reducing fatigue and aiding in easy entrance and exit.
The 5E engines are designed with high torque reserve of around 20-25 percent.
12 F/12 R speeds provides more speed options to operator for different applications Control the aggressiveness of the forward/reverse modulation on tractors equipped with PowrReverser transmissions
The 5E Series Tractor straddle-mount operator station is designed to position the operator farther forward and slightly lower than most other tractors in this class. This design improves the operator's ride and visibility.
EQRL switches are ergonomically located on both front and rear sides. During headland turns, front EQRL switches allow the operator to quickly raise and lower the hitch without operating the PC and DC levers.
Tractor speed Service hours Tractor running hours for a job
Transmission durability is enhanced with the pressure-lubricated top shaft, allowing an operator to achieve performance from one working season to the next.
The 540/540 economy PTO allows operators to select the engine rpm for reduced fuel consumption, reduced noise levels, reduced vibration, and less wear and tear on the engine, while at the same time keeping the proper 540 rpm at the PTO.
