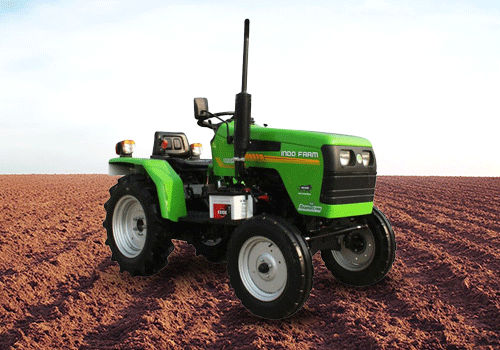

Indo Farm 1020 DI
×
Recommended Tractors
| HP Category | : 20 HP |
|---|---|
| Displacement CC in | : 895 CC |
| No. of cylinder | : 1 Cylinder |
| Max PTO (HP) | : 12.92 HP |
| Gear Box Type | : 6 Forward + 2 Reverse |
| Price | :
4.30 Lakh - 4.50 Lakh
Ex-Showroom
|
Indo Farm 1020 DI Tractor has the comfort and convenience features to keep you smiling even during the longest days
- 20 HP
- 2WD
- 895 CC
- 1 Cylinder
- 12.92 HP
- 6 Forward + 2 Reverse
Introduction
The Indo Farm 1020DI is a 20 HP, single-cylinder orchard/field tractor ideal for small farms, vineyards, row crops, etc. And its small size, low fuel use, and common design make it a work tool for many jobs—from plowing and tilling to hauling and maintenance concessions.
Specifications
Engine: 20 hp, 895 cc, single-cylinder, direct injection
Gearbox: 6 Forward + 2 Reverse gears of Sliding mesh type
Brakes: Type Oil-immersed disc brakes for better braking qualities
Steering: Mechanical recirculating ball type
Hydraulics: lifting capacity: 500 kgs with gear-type hydraulics pump
Tires: Front: 5.20 x 14 | Rear: 8.00 x 18
Dimension: Length: 2520 mm | Width: 1050 mm | Height: 1240 mm
Weight: 800 kg
Fuel Tank Capacity: 23 liters
PTO Power: 12.92 HP @ 2300 rpm Cylinders: 3 No. of Spline: 6 splines
Ground Clearance: 210 mm
3.2 m without brakes 3.8m with brakes
Benefits
Small Ag and Orchard Use: Compact and lightweight.
FUEL EFFICIENCY: Direct-injection system promotes fuel efficiency
Performance: With oil-immersed brakes and strong construction, it's made to last
Multi-use: Works with a variety of attachments to accomplish all of your farming needs
User-Friendly: Basic mechanical steering and adjustable driver's seat
Features
Power Unit: 20 H.P., single-cylinder 895 CC direct injection diesel engine
Transmission: six-speed synchro sliding mesh forwards and two reverse gears
Brakes: The brakes are oil-immersed multi-disk type, which provides long life to the brakes and also provides better control over machine behavior.
Steering: Smooth handling with a mechanical recirculating ball type
Hydraulics: 500 kg lifting power from gear-type hydraulic pump
Tires: Front: 5.20 x 14 | Rear: 8.00 x 18
Oil Tank Capacity: 23 liters for longer missions
PTO Horsepower: 12.92 HP @ 2300 RPM and 6 splines
Ground Clearance: 210 mm to offer better corresponding on rough surface
Turning radius: 2.2 m with brake for easy use
Best Price
The Indo Farm 1020 DI tractor price is ₹ 4.30-₹ 4.50 Lakh* (ex-showroom) in India.
Other Details
Driver's Seat Adjustable for Reach And Height
Efficient Oil Bath Air Cleaner for effective filtration
Included is a Single Clutch System for fluid handling.
with hand lever lock of the parking brake
Suitable For Multiple Implements such as rotavators, cultivators, & ploughs
