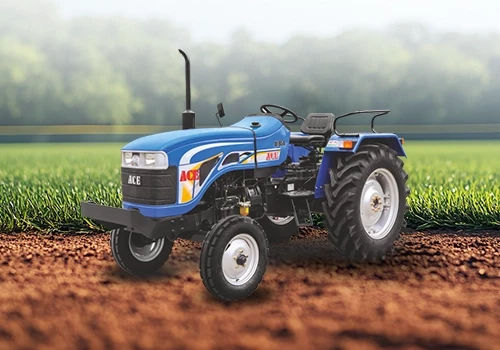

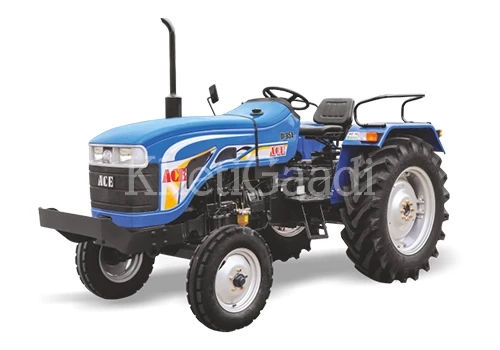

ACE DI 854NG Specifications

Engine Type : Direct Injection water cooled
Emission Standard : Bharat 3A
Engine Rated RPM : 1800
Engine HP : 32.1
Power KW :23.6
Displacement CC :2858
Bore in (mm) :105
Stroke in (mm) : 110
Fuel Pump :Inline
Cylinder Capacity cc :2858
No. of Cylinder :3
Torque : 155
Air Cleaner / Filter :Dry Type
Linkage Category : cat I / II
Speed Reverse - kmph :2.86 /11.31
Power Take Off (P.T.O rpm) :540
No. of gears Forward :8
No. of gears Reverse :2
Gear Box Type :Sliding
Front Axel :Rigid
Brakes Type :Dry Disk (servicable brakes
Clutch Type : Single
P.T.O. Type :Live -6 splines
PTO RPM : 540
Steering Type :Mechanical
Type :Live
Lifting Capacity at Standard Frame :1200
3 Point Linkage :cat I / II
Pump Type :Gear Type
Lower Link :Cat-II
Total Weight :1920 Kg
Height :2320 mm
Wheel Base :1960 mm
Overall Length :3650 mm
Overall Width :1700 mm
Ground Clearance :395 mm
Turning Radius of Brakes :3.09 Meter
Turning Radius w. o. Brakes :3.5 Meter
Drive : 2WD
Front Tyre :6.00 x 16
Rear Tyre :12.4 x 28
Wheel Track Rear :1360
Battery Capacity :75 AH - 12 V
Battery Type :Lead Acid
Alternator :12 V-42 A
Horn :Electromagnetically vibrated diaphragm
Indicator & Gauge :yes
Electrical System :yes
Electrical Overview :yes
Fuel Indicator :yes
Coolant Temp/Water Temp gauge :yes
Head Lamp(Low/High Beam) :yes
Battery Indicator/Charging :yes
Engine Oil Indicator :yes
Hour Meter :yes
Air Cleaner Clogging Sensor :yes
Rear Plough Lamp :yes
Parking Brake :yes
On Board Instruments(Analog/Digital) : Digital
Website :www.ace-cranes.com


ACE DI 854NG
