ACE
ACE DI 854NG and VST Shakti 932 DI
ACE DI 854NG
32 HP
6.1 Lakh - 6.45 Lakh
|

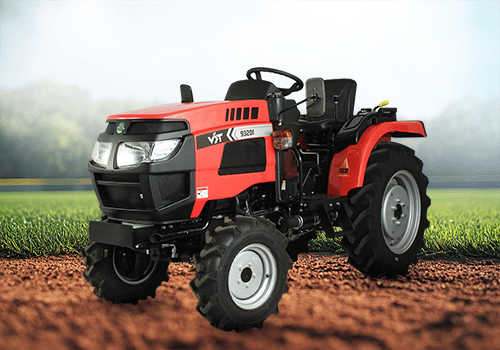

VST Shakti 932 DI
30 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | Direct Injection Water Cooled | N/A | |||
| Engine rated RPM | 1800 RPM | 2500 RPM | |||
| HP Category | 32.1 HP | 30 HP | |||
| Displacement CC in | 2858 CC | 1642 CC | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Max Torque - Nm | 155 Nm | 109.4 Nm | |||
| Air Cleaner / Filter | Dry Type | Dry Type | |||
| Cooling System | Water Cooled | Water Cooled | |||
| Emission standard | Bharat 3A | N/A | |||
| Fuel type | High Speed Diesel | High Speed Diesel | |||
| Fuel Pump Type | Inline | N/A | |||
| Power KW | 23.6 KW | N/A | |||
| stroke in (mm) | 110 mm | N/A | |||
| Bore in (mm) | 105 mm | N/A | |||
| Height | N/A | 1390 mm | |||
| Shifting Type | N/A | Side Shift | |||
| Hydraulics | 1200 | Auto Draft & Depth Control (ADDC) | |||
| Transmission | |||||
| Transmission type | N/A | Fully Synchromesh | |||
| No. of gears Forward | 8 Forward | 9 Forward | |||
| No. of gears Reverse | 2 Reverse | 3 Reverse | |||
| Speed Forward - kmph | 2.3 - 27.78 Kmph | 1.81 - 22.32 Kmph | |||
| Speed Reverse - kmph | 2.86 - 11.31 Kmph | 1.92-12.08 Kmph | |||
| Brakes type | Dry Disk (Servicable Brakes) | Oil Immersed Disc Brake | |||
| clutch type | Single Clutch | Double Clutch | |||
| Gear Box Type | 8 Forward + 2 Reverse Sliding Mesh | 9 Forward + 3 Reverse | |||
| Front Axle | Rigid | N/A | |||
| Power Take Off | |||||
| Max PTO (HP) | 29.9 HP | 24 HP | |||
| PTO RPM @ engine, rpm | 540 RPM | 540/ 540E RPM | |||
| PTO Type | Live - 6 splines | RPTO/Mid PTO | |||
| Steering | |||||
| Steering type | Mechanical Steering | Double Acting Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1200 Kg | 1250 Kg | |||
| 3 Point Linkage | Cat I / II | Cat -1 | |||
| Dimensions & Weight | |||||
| Ground Clearance | 395 Nm | 325 Nm | |||
| Total Weight | 1920 Kg | 1240 Kg | |||
| Turning radius With Brake | N/A | 2.1 Nm | |||
| Turning radius Without Brake | 3500 mm | N/A | |||
| Overall Length | 3650 mm | 2310 mm | |||
| Overall Width | 1700 mm | 1130 mm | |||
| Wheel Base | 1960 mm | 1520 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.00 x 16 | 6 x 12 | |||
| Tyre Size Rear | 12.4 x 28 | 9.5 x 20 | |||
| Electrical | |||||
| Battery Capacity | 12 V 75 Ah AH | N/A | |||
| Alternator | 12 V 42 A | N/A | |||
| Battery Type | Lead Acid | N/A | |||
| Others | |||||
