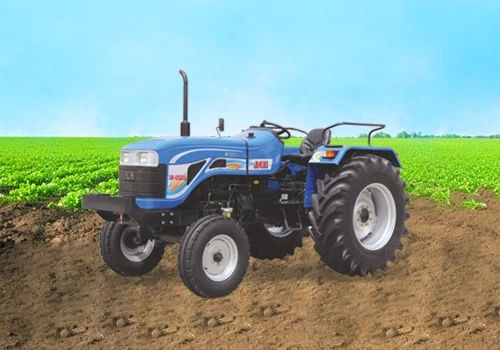

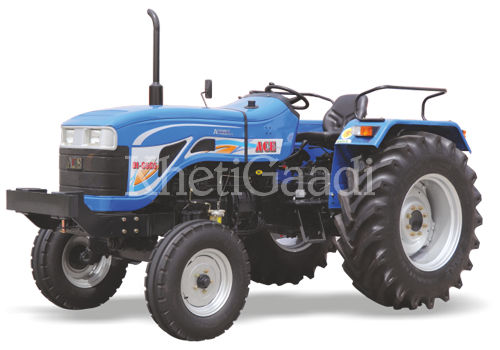

ACE DI 6565 Tractor Specifications

Engine Type : Direct Injection water cooled
Emission Standard : Bharat 3A
Engine Rated RPM : 2200
Engine HP : 61
Power KW :45.00
Displacement CC :4088
Bore in (mm) :105
Stroke in (mm) : 118
Fuel Pump :Inline
Cylinder Capacity cc :4088
No. of Cylinder :4
Torque : 260
Air Cleaner / Filter :Dry Type
Linkage Category : cat I / II
Speed Forward - kmph : 2.92 / 35.1
Speed Reverse - kmph :3.62 / 14.3
No. of gears Forward :8
No. of gears Reverse :2
Gear Box Type :Sliding
Front Axel :Rigid/adjustable
Brakes Type :Dry brake
Clutch Type :Dual clutch
P.T.O. Type :Live -6 splines
PTO RPM : 540
Steering Type :Mechanical / Power steering
Type :Live
Lifting Capacity at Standard Frame :1800
3 Point Linkage :cat I / II
Pump Type :Gear Type
Lower Link :Cat-II
Total Weight :2280 Kg
Height :2340 mm
Wheel Base :2130 mm
Overall Length :3845 mm
Overall Width :1940 mm
Ground Clearance :465 mm
Turning Radius of Brakes :3.4 meter
Turning Radius w. o. Brakes :4.02 meter
Drive : 2WD
Front Tyre :7.50 x 16
Rear Tyre :16.9 x 28
Wheel Track Rear :1485
Battery Capacity :88 AH - 12 V
Battery Type :Lead Acid
Alternator :12 V-42 A
Horn :Electromagnetically vibrated diaphragm
Indicator & Gauge :yes
Electrical System :yes
Electrical Overview :yes
Fuel Indicator :yes
Coolant Temp/Water Temp gauge :yes
Head Lamp(Low/High Beam) :yes
Battery Indicator/Charging :yes
Engine Oil Indicator :yes
Hour Meter :yes
Air Cleaner Clogging Sensor :yes
Rear Plough Lamp :yes
Parking Brake :yes
On Board Instruments(Analog/Digital) :Digital
