ACE DI 6565 Specifications
Specifications
Engine
| Engine type | Direct Injection Water Cooled |
|---|---|
| Engine rated RPM | 2200 RPM |
| Engine HP | 61.2 HP |
| Displacement CC in | 4088 CC |
| No. of cylinder | 4 Cylinder |
| Max Torque - Nm | 260 Nm |
| Air Cleaner / Filter | Dry Type |
| Cooling System | Water Cooled |
| Emission standard | Bharat 3A |
| Fuel type | High Speed Diesel |
| Fuel Pump Type | Inline |
| Power KW | 45 KW |
| stroke in (mm) | 118 mm |
| Bore in (mm) | 105 mm |
| Fuel Pump Capacity | NA |
| Fuel Tank Capacity | 65 ltrs |
| Dry Weight kg | NA |
| Height | 2340 mm |
| Starter Motor | NA |
| Accessories | NA |
| Shifting Type | NA |
| Hydraulics | 1800 kg |
Transmission
| Transmission type | Sliding Mesh |
|---|---|
| No. of gears Forward | 8 |
| No. of gears Reverse | 2 |
| Speed Forward - kmph | 2.92 - 35.1 kmph |
| Speed Reverse - kmph | 3.62 - 14.3 kmph |
| Brakes type | Oil Immersed Brakes |
| clutch type | Dual Clutch |
| Gear Box Type | 8 Forward + 2 Reverse Sliding Mesh |
| Front Axle | Rigid/Adjustable |
| Rear Axle | NA |
Power Take Off
| Max PTO (HP) | 55.6 PTO HP |
|---|---|
| PTO RPM @ engine, rpm | 540 |
| PTO Type | Live -6 splines |
| PTO Speed | NA |
Steering
| Steering Column | NA |
|---|---|
| Steering type | Power Steering |
Hydraulic
| Lifting Capacity Max. | 1800 kg |
|---|---|
| 3 Point Linkage | Cat I/II |
| Spool Valve | NA |
| Type | Live |
Dimensions & Weight
| Ground Clearance | 465 mm |
|---|---|
| Total Weight | 2280 kg |
| Turning radius With Brake | NA |
| Turning radius Without Brake | 4020 mm |
| Overall Length | 3845 mm |
| Overall Width | 1940 mm |
| Wheel Base | 2130 mm |
Wheels & Tyres
| Tyre Size Front | 7.50 x 16 mm |
|---|---|
| Tyre Size Rear | 16.9 x 28 mm |
| Type Front | NA |
| Type Rear | NA |
Electrical
| Battery Capacity | 12 V 88 Ah |
|---|---|
| Alternator | 12 V 42 A |
| Battery Type | Lead Acid |
Know More

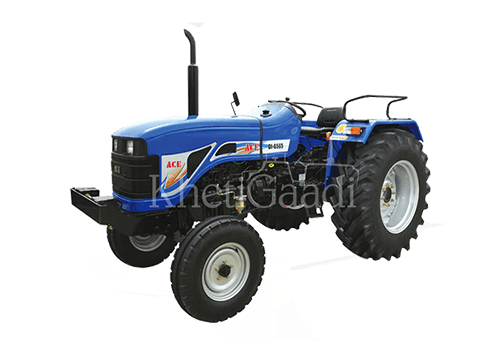

ACE DI 6565 Tractor
The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get ACE DI 6565 tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. ACE DI 6565 tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.
If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. ACE is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. ACE DI 6565 has 61.2 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.
Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 61-70 HP Range in ACE DI 6565. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. ACE DI 6565 tractor has 2WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.
ACE DI 6565 tractor has 4088 CC CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor ACE DI 6565 has 4 Cylinder number of cylinders. You will get 55.6 PTO HP PTO HP in the tractor ACE DI 6565.
This tractor provides a 8 Forward + 2 Reverse Sliding Mesh gearbox.
So, if you are looking for the purchase of the tractor go through the official links, websites, and dealers and services like Khetigaadi that provide reliable information to the customers.
