ACE DI 6565 4WD Specifications

Engine Type : Direct Injection water cooled
Emission Standard : Bharat 3A
Engine Rated RPM : 2200
Engine HP : 61
Power KW :45.00
Displacement CC :4088
Bore in (mm) :105
Stroke in (mm) : 118
Fuel Pump :Inline
Cylinder Capacity cc :4088
No. of Cylinder :4
Torque : 260
Air Cleaner / Filter :Dry Type
Linkage Category : cat I / II
Speed Reverse - kmph :3.60/ 14.50
Power Take Off (P.T.O rpm) :540
No. of gears Forward :8
No. of gears Reverse :2
Gear Box Type :Sliding
Front Axel :Live axle
Brakes Type :Oil Immersed Brakes (Dry disk optional)
Clutch Type :Dual clutch
P.T.O. Type :Live -6 splines
PTO RPM : 540
Steering Type :Power
Type :Live
Lifting Capacity at Standard Frame :1800
3 Point Linkage :cat I / II
Pump Type :Gear Type
Lower Link :Cat-II
Total Weight :2515 Kg
Height :2500 mm
Wheel Base :2200 mm
Overall Length :3845 mm
Overall Width :1995 mm
Ground Clearance :385 mm
Turning Radius of Brakes :4.2 meter
Turning Radius w. o. Brakes :4.66 meter
Drive : 4WD
Front Tyre :9.5x24
Rear Tyre :16.9x28
Wheel Track Rear :1940
Battery Capacity :88 AH - 12 V
Battery Type :Lead Acid
Alternator :12 V-42 A
Horn :Electromagnetically vibrated diaphragm
Indicator & Gauge :yes
Electrical System :yes
Electrical Overview :yes
Fuel Indicator :yes
Coolant Temp/Water Temp gauge :yes
Head Lamp(Low/High Beam) :yes
Battery Indicator/Charging :yes
Engine Oil Indicator :yes
Hour Meter :yes
Air Cleaner Clogging Sensor :yes
Rear Plough Lamp :yes
Parking Brake :yes
On Board Instruments(Analog/Digital) :Digital
Website :www.ace-cranes.com

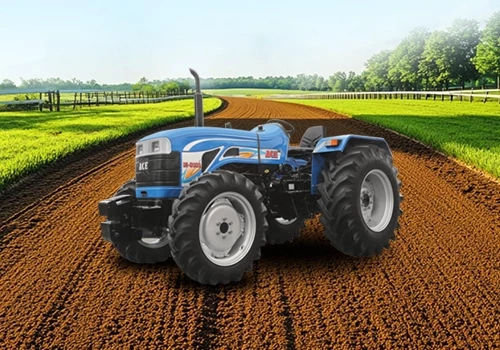

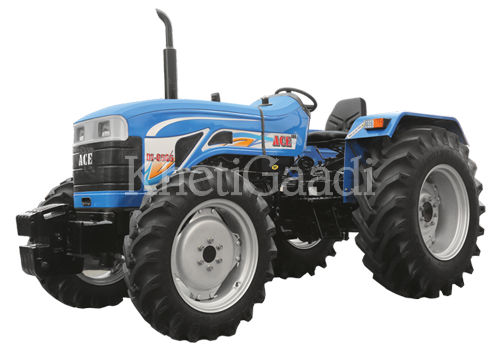

ACE DI 6565 4WD
