ACE DI 6565 4WD Specifications

tractor

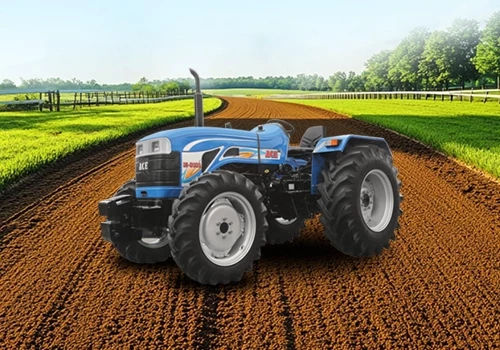

ACE DI 6565 4WD

4WD 7.8 - 8.2 Lakh Get On Road Price

Specifications

Engine

Engine type Direct Injection Water Cooled
Engine rated RPM 2200 RPM
Engine HP 61.2 HP
Displacement CC in 4088 CC
No. of cylinder 4 Cylinder
Max Torque - Nm 260 Nm
Air Cleaner / Filter Dry Type
Cooling System Water Cooled
Emission standard Bharat 3A
Fuel type High Speed Diesel
Fuel Pump Type Inline
Power KW 45 KW
stroke in (mm) 118 mm
Bore in (mm) 105 mm
Fuel Pump Capacity NA
Fuel Tank Capacity 65 ltrs
Dry Weight kg NA
Height 2500 mm
Starter Motor NA
Accessories NA
Shifting Type NA
Hydraulics 1800 kg
Ad
ad

Transmission

Transmission type Sliding Mesh
No. of gears Forward 8
No. of gears Reverse 2
Speed Forward - kmph 2.92 - 35.1 kmph
Speed Reverse - kmph 3.60 - 14.50 kmph
Brakes type Oil Immersed Brakes
clutch type Dual Clutch
Gear Box Type 8 Forward + 2 Reverse Sliding Mesh
Front Axle Rigid/Adjustable
Rear Axle NA
Ad
ad

Power Take Off

Max PTO (HP) 55.6 PTO HP
PTO RPM @ engine, rpm 540
PTO Type Live -6 splines
PTO Speed NA
Ad
ad

Steering

Steering Column NA
Steering type Power Steering
Ad
ad

Hydraulic

Lifting Capacity Max. 1800 kg
3 Point Linkage Cat I/II
Spool Valve NA
Type NA
Ad
ad

Dimensions & Weight

Ground Clearance 385 mm
Total Weight 2515 kg
Turning radius With Brake NA
Turning radius Without Brake 4200 mm
Overall Length 3845 mm
Overall Width 1995 mm
Wheel Base 2200 mm
Ad
ad

Wheels & Tyres

Tyre Size Front 9.5 x 24 mm
Tyre Size Rear 16.9 x 28 mm
Type Front NA
Type Rear NA
Ad
ad

Electrical

Battery Capacity 12 V 88 Ah
Alternator 12 V 42 A
Battery Type Lead Acid
Ad
ad

Ad
ad

ACE DI 6565 4WD Tractor

The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get ACE DI 6565 4WD tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. ACE DI 6565 4WD tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.

If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. ACE is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. ACE DI 6565 4WD has 61.2 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.

Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 61-70 HP Range in ACE DI 6565 4WD. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. ACE DI 6565 4WD tractor has 4WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.

ACE DI 6565 4WD tractor has 4088 CC CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor ACE DI 6565 4WD has 4 Cylinder number of cylinders. You will get 55.6 PTO HP PTO HP in the tractor ACE DI 6565 4WD.

This tractor provides a 8 Forward + 2 Reverse Sliding Mesh gearbox.

So, if you are looking for the purchase of the tractor go through the official links, websites, and dealers and services like Khetigaadi that provide reliable information to the customers.
