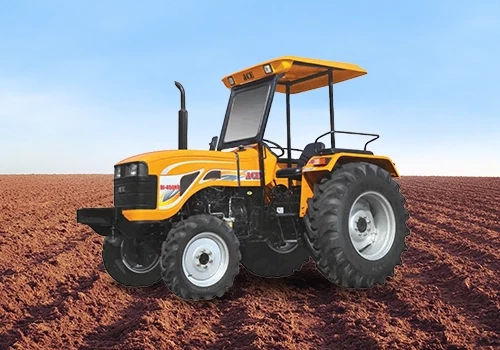

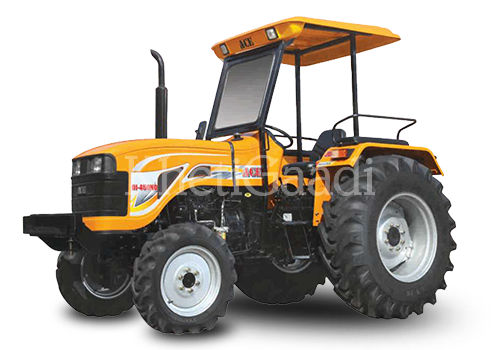

ACE DI 450NG 4WD Tractor Specifications

Engine Type : Direct Injection water cooled
Emission Standard : Bharat 3A
Engine Rated RPM : 2000
Engine HP : 45
Power KW :33.1
Displacement CC :2858
Bore in (mm) :105
Stroke in (mm) : 110
Fuel Pump :Inline
Cylinder Capacity cc :2858
No. of Cylinder :3
Torque : 185
Air Cleaner / Filter :Dry Type
Linkage Category : cat I / II
Speed Forward - kmph : 2.5 / 31.9
Speed Reverse - kmph :3.51 /13.87
No. of gears Forward :8
No. of gears Reverse :2
Gear Box Type :Sliding
Front Axel :Live axle
Brakes Type :Dry Disk (servicable) / Oil immersed (Optional)
Clutch Type :Dual clutch
P.T.O. Type :Live -6 splines
PTO RPM : 540
Steering Type :Power
Type :Live
Lifting Capacity at Standard Frame :1200/1800
3 Point Linkage :cat I / II
Pump Type :Gear Type
Lower Link :Cat-II
Total Weight :2170 Kg
Height :2300 mm
Wheel Base :2060 mm
Overall Length :3740 mm
Overall Width :1740 mm
Ground Clearance :370 mm
Turning Radius of Brakes :3.6 Meter
Turning Radius w. o. Brakes :4.7 Meter
Drive : 4WD
Front Tyre :8.00x18
Rear Tyre :13.6x28
Wheel Track Rear :1430
Battery Capacity :88 AH - 12 V
Battery Type :Lead Acid
Alternator :12 V-42 A
Horn :Electromagnetically vibrated diaphragm
Indicator & Gauge :yes
Electrical System :yes
Electrical Overview :yes
Fuel Indicator :yes
Coolant Temp/Water Temp gauge :yes
Head Lamp(Low/High Beam) :yes
Battery Indicator/Charging :yes
Engine Oil Indicator :yes
Hour Meter :yes
Air Cleaner Clogging Sensor :yes
Rear Plough Lamp :yes
Parking Brake :yes
On Board Instruments(Analog/Digital) :Digital
