ACE DI 450NG 4WD Specifications
ACE DI 450NG 4WD
4WD 7.95 Lakh - 8.35 LakhSpecifications
| ACE DI 450NG 4WD Engine | |
|---|---|
| Engine type | Direct Injection Water Cooled |
| Engine rated RPM | 2000 RPM |
| HP Category | 45 HP |
| Displacement CC in | 2858 CC |
| No. of cylinder | 3 Cylinder |
| Max Torque - Nm | 185 Nm |
| Air Cleaner / Filter | Dry Type |
| Cooling System | Water Cooled |
| Emission standard | Bharat 3A |
| Fuel type | High Speed Diesel |
| Fuel Pump Type | Inline |
| Power KW | 33.1 KW |
| stroke in (mm) | 110 mm |
| Bore in (mm) | 105 mm |
| Height | 2300 mm |
| Hydraulics | 1200/1800 |
| ACE DI 450NG 4WD Transmission | |
| Transmission type | Sliding Mesh |
| No. of gears Forward | 8 Forward |
| No. of gears Reverse | 2 Reverse |
| Speed Forward - kmph | 2.5 - 31.9 Kmph |
| Speed Reverse - kmph | 3.51 - 13.87 Kmph |
| Brakes type | Dry Disk (Servicable)/Oil Immersed Brakes (Optional) |
| clutch type | Dual Clutch |
| Gear Box Type | 8 Forward + 2 Reverse Sliding Mesh |
| Front Axle | Live axle |
| ACE DI 450NG 4WD Power Take Off | |
| Max PTO (HP) | 42.16 HP |
| PTO RPM @ engine, rpm | 540 RPM |
| PTO Type | Live -6 splines |
| ACE DI 450NG 4WD Steering | |
| Steering type | Power steering |
| ACE DI 450NG 4WD Hydraulic | |
| Lifting Capacity Max. | 1200/1800 Kg |
| 3 Point Linkage | Cat I/II |
| Type | Live |
| ACE DI 450NG 4WD Dimensions & Weight | |
| Ground Clearance | 370 Nm |
| Total Weight | 2170 Kg |
| Turning radius Without Brake | 4700 mm |
| Overall Length | 3740 mm |
| Overall Width | 1740 mm |
| Wheel Base | 2060 mm |
| ACE DI 450NG 4WD Wheels & Tyres | |
| Tyre Size Front | 8.00 x 18 |
| Tyre Size Rear | 13.6 x 28 |
| ACE DI 450NG 4WD Electrical | |
| Battery Capacity | 12 V 88 Ah AH |
| Alternator | 12 V 42 A |
| Battery Type | Lead Acid |
Please read Safety Tips carefully before making any purchase
Know More

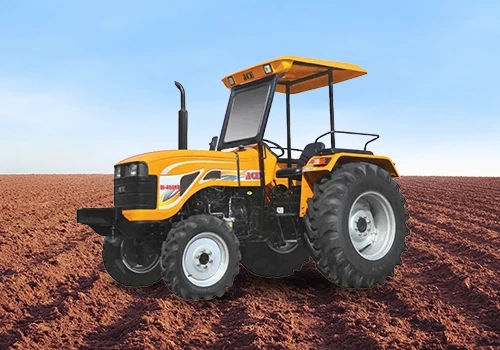

ACE DI 450NG 4WD Tractor
The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get ACE DI 450NG 4WD tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. ACE DI 450NG 4WD tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.
If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. ACE is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. ACE DI 450NG 4WD has 45 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.
Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 41-50 HP Range in ACE DI 450NG 4WD. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. ACE DI 450NG 4WD tractor has 4WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.
ACE DI 450NG 4WD tractor has 2858 CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor ACE DI 450NG 4WD has 3 number of cylinders. You will get 42.16 PTO HP in the tractor ACE DI 450NG 4WD.
This tractor provides a 8 Forward + 2 Reverse Sliding Mesh gearbox.
So, if you are looking for the tractor price of the tractor go through the official links, websites, and dealers and services like Khetigaadi that provide reliable information to the customers.
