Indo Farm 1026 4WD Specifications

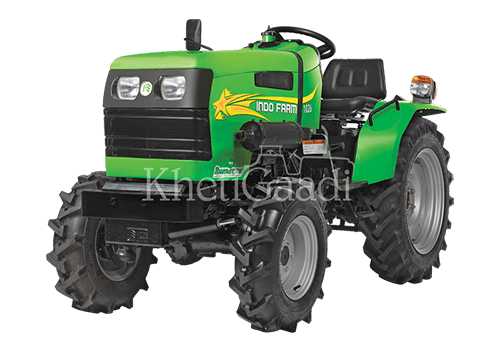

Indo Farm 1026 4WD

4WD 3.9 - 3.92 Lakh Get On Road Price



Engine type Diesel, Four Stroke IDI Engine
Engine rated RPM 2700 RPM
Engine HP 26 HP
Displacement CC in 1318 CC
No. of cylinder 3 Cylinder
Max Torque - Nm 82 Nm
Air Cleaner / Filter Dry Type
Cooling System Water Cooled
Emission standard NA
Fuel type Diesel
Fuel Pump Type Inline
Power KW NA
stroke in (mm) 92 mm
Bore in (mm) 78 mm
Fuel Pump Capacity NA
Fuel Tank Capacity 22 ltrs
Dry Weight kg NA
Height 1260 mm
Starter Motor NA
Accessories NA
Shifting Type NA
Hydraulics 500 kg


Transmission type NA
No. of gears Forward 6
No. of gears Reverse 2
Speed Forward - kmph 1.27 - 15 kmph
Speed Reverse - kmph 1.63 - 7.16 kmph
Brakes type Dry Brakes
clutch type Single Clutch
Gear Box Type 6 Forward + 2 Reverse
Front Axle NA
Rear Axle NA

Power Take Off

Max PTO (HP) 21.8 PTO HP
PTO RPM @ engine, rpm 630/930/1605 RPM
PTO Speed NA


Steering Column NA
Steering type Mechanical Steering - Recirculating Ball Type


Lifting Capacity Max. 500 kg
3 Point Linkage NA
Spool Valve NA
Type NA

Dimensions & Weight

Ground Clearance 210 mm
Total Weight 850 kg
Turning radius With Brake NA
Turning radius Without Brake NA
Overall Length 2680 mm
Overall Width 1050 mm
Wheel Base NA

Wheels & Tyres

Tyre Size Front 5.0 x 12 mm
Tyre Size Rear 8.0 x 18 mm
Type Front NA
Type Rear NA


Battery Capacity 12 V 65 Ah
Alternator NA
Battery Type NA


Indo Farm 1026 4WD Tractor

The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get Indo Farm 1026 4WD tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. Indo Farm 1026 4WD tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.

If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. Indo Farm is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. Indo Farm 1026 4WD has 26 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.

Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 21-30 HP Range in Indo Farm 1026 4WD. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. Indo Farm 1026 4WD tractor has 4WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.

Indo Farm 1026 4WD tractor has 1318 CC CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor Indo Farm 1026 4WD has 3 Cylinder number of cylinders. You will get 21.8 PTO HP PTO HP in the tractor Indo Farm 1026 4WD.

This tractor provides a 6 Forward + 2 Reverse gearbox.

So, if you are looking for the purchase of the tractor go through the official links, websites, and dealers and services like Khetigaadi that provide reliable information to the customers.
