| Engine Type : | 4 Stroke, Direct injection, Diesel engine |
|---|---|
| Engine Rated RPM : | 1900 |
| Engine HP : | 41 |
| Displacement CC : | 2730 |
| Bore in (mm) : | 88.9 |
| Stroke in (mm) : | 110 |
| Cooling System : | Water Cooled with No loss tank |
| Fuel Type : | Diesel |
| No. of Cylinder : | 4 |
| Air Cleaner / Filter : | 3- Stage Oil Bath Type |
| Speed Forward - kmph : | 2.3 to 29.3 |
|---|---|
| Speed Reverse - kmph : | 2.7 & 10.6 |
| No. of gears Forward : | 8 |
| No. of gears Reverse : | 2 |
| Brakes Type : | Oil Immersed Brakes |
| Clutch Type : | Single dry disc friction plate – 305 mm dia. (12”) |
| PTO RPM : | 540 |
|---|
| Steering Type : | Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator. |
|---|
| Type : | A) Position control: To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control : For optimum field output |
|---|---|
| Lifting Capacity at Standard Frame : | 1200 Kgf |
| 3 Point Linkage : | 3 point linkage suitable for Category-I&II type implement pins |
| Total Weight : | 1930 Kg |
|---|---|
| Wheel Base : | 2060 mm |
| Overall Length : | 3370 mm |
| Overall Width : | 1765 mm |
| Ground Clearance : | 410 mm |
| Drive : | 2WD |
|---|---|
| Front Tyre : | 6.00 x 16 |
| Rear Tyre : | 13.6 x 28 Standard, 12.4 X 28 Optional |
| Wheel Track Front : | 1350 mm |
| Wheel Track Rear : | 1410 mm |
| Battery Capacity : | 12V, 88Ah |
|---|
| Website : | http://www.swarajtractors.com/ |
|---|

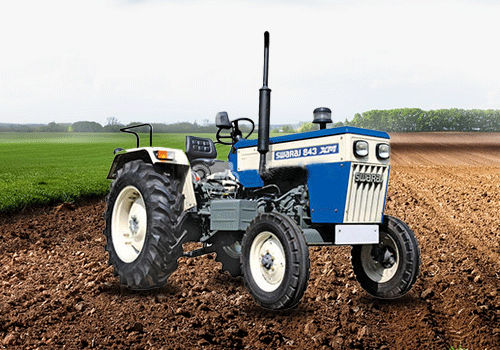

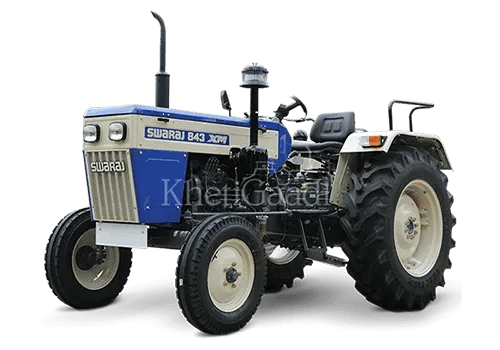

About Swaraj 843 XM - OSM
Ambamata Ghati Titardi ,Udaipur ,Rajasthan
10/280/13Teachers Colony, Yerraguntla Bye Pass Road ,Proddatur ,Andhra Pradesh
Village Chunatti Gara, Po Kankarkuidelhi Road ,Saharanpur ,Uttar Pradesh
Railway Road ,Mainpuri ,Uttar Pradesh
Main Roaddhaka, Dhaka ,East Champaran ,Bihar
Beside Indian Bankdhamtari Road ,Rajpur ,Chhattisgarh
Manu Ka Puwa, G.T. Road, Near Shukla Naursing Home, Khaga ,Fatehpur ,Uttar Pradesh
Near Mahalaxmi Petro Pump At & Po: Tadkava, N.H.No.6, Vyara ,Tapi ,Gujarat
Ward No-13, Sagar Roadpatandev ,Raisen ,Madhya Pradesh
Shop No. 57-58, Ramleela Market Main Road, Mela Ground ,Vidisha ,Madhya Pradesh
A speciality of this Easy Side Gear mechanism is that it ensures smooth shifting of gears even when a tractor is running at high speed.
Sensilift hydraulics is built with an improved control valve which helps in maintaining uniform depth during seed drill operation and potato plantation.
Better front stability during heavy loading conditions
More stability on haulage – Comfortable driving
Better braking efficiency - Less maintenance - Longer life
Uninterrupted PTO operation - More output
For external applications - without operation of lower links
