| Engine Type : | 4 - Stroke, Direct Injection, Diesel Engine |
|---|---|
| Engine Rated RPM : | 2000 |
| Engine HP : | 48 |
| Displacement CC : | 3136 |
| Bore in (mm) : | 110 |
| Stroke in (mm) : | 110 |
| Cooling System : | Water Cooled with No loss tank |
| Fuel Type : | Diesel |
| No. of Cylinder : | 3 |
| Air Cleaner / Filter : | 3- Stage Oil Bath Type |
| Speed Forward - kmph : | 3.1 to 29.2 |
|---|---|
| Speed Reverse - kmph : | 4.3 & 14.3 |
| No. of gears Forward : | 8 |
| No. of gears Reverse : | 2 |
| Brakes Type : | Oil Immersed Brakes |
| Clutch Type : | Dual Clutch, 280 mm dia |
| PTO RPM : | 540 |
|---|
| Steering Type : | Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator. |
|---|
| Type : | A) Position control: To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control : For optimum field output |
|---|---|
| Lifting Capacity at Standard Frame : | 1700 Kgf |
| 3 Point Linkage : | 3 point linkage suitable for Category-I& II type implement pins |
| Total Weight : | 2050 Kg |
|---|---|
| Wheel Base : | 1950 mm |
| Overall Length : | 3440 mm |
| Overall Width : | 1730 mm |
| Ground Clearance : | 400 mm |
| Drive : | 2WD |
|---|---|
| Front Tyre : | 6.00 x 16 |
| Rear Tyre : | 13.6 x 28 |
| Wheel Track Front : | 1300 mm |
| Wheel Track Rear : | 1350 mm |
| Battery Capacity : | 12V, 88Ah |
|---|
| Website : | http://www.swarajtractors.com/ |
|---|

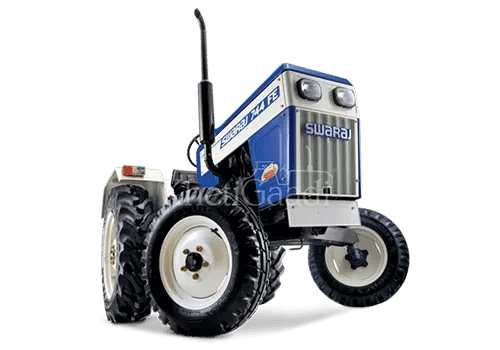

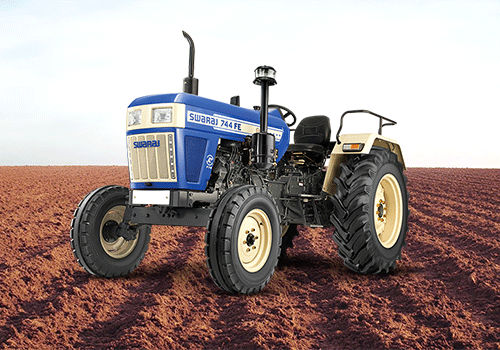

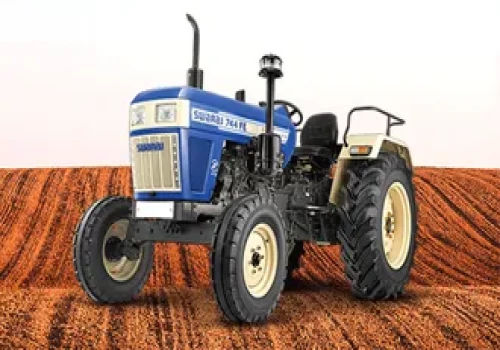

About Swaraj 744 FE Potato Xpert
Ambamata Ghati Titardi ,Udaipur ,Rajasthan
10/280/13Teachers Colony, Yerraguntla Bye Pass Road ,Proddatur ,Andhra Pradesh
Village Chunatti Gara, Po Kankarkuidelhi Road ,Saharanpur ,Uttar Pradesh
Railway Road ,Mainpuri ,Uttar Pradesh
Main Roaddhaka, Dhaka ,East Champaran ,Bihar
Beside Indian Bankdhamtari Road ,Rajpur ,Chhattisgarh
Manu Ka Puwa, G.T. Road, Near Shukla Naursing Home, Khaga ,Fatehpur ,Uttar Pradesh
Near Mahalaxmi Petro Pump At & Po: Tadkava, N.H.No.6, Vyara ,Tapi ,Gujarat
Ward No-13, Sagar Roadpatandev ,Raisen ,Madhya Pradesh
Shop No. 57-58, Ramleela Market Main Road, Mela Ground ,Vidisha ,Madhya Pradesh
Sensilift hydraulics is an advanced lift specially designed by Swaraj for better performance on all implements, like cultivator, harrow, plough, seed drill, potato planter, leveller etc.
Better front stability during heavy potato planting & seed drill operation
Better front stability during heavy potato planting & seed drill operation
More power : Power from each drop of diesel – fuel burns efficiently
Easy adjust of wheel track - Suitable for intercultivation like potato farming
Uninterrupted PTO operation - More output
Better braking efficiency - Less maintenance - Longer life
