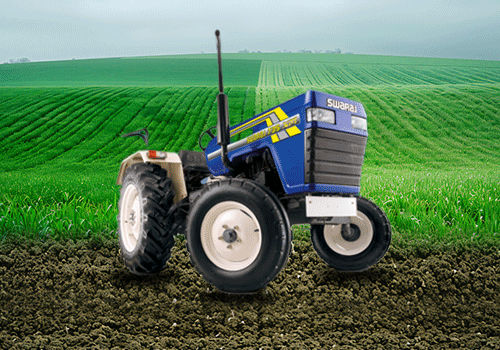

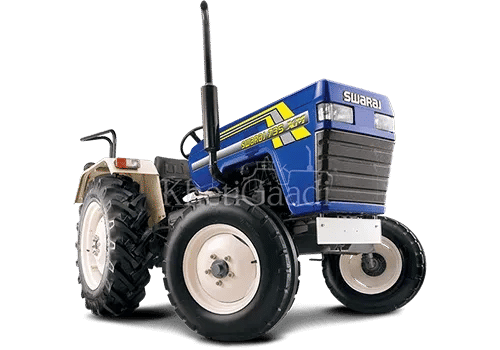

Swaraj 735 XM Tractor Specifications
| Engine Type : | 4 Stroke, Direct injection, Diesel engine |
|---|---|
| Engine Rated RPM : | 1800 |
| Engine HP : | 35 |
| Displacement CC : | 2734 |
| Bore in (mm) : | 100 |
| Stroke in (mm) : | 116 |
| Cooling System : | Water Cooled with No loss tank |
| Fuel Type : | Diesel |
| No. of Cylinder : | 3 |
| Air Cleaner / Filter : | 3- Stage Oil Bath Type |
| Speed Forward - kmph : | 2.30 to 27.80 |
|---|---|
| Speed Reverse - kmph : | 2.73 & 10.74 |
| No. of gears Forward : | 8 |
| No. of gears Reverse : | 2 |
| Gear Box Type : | Partially Constant |
| Brakes Type : | Dry Disc type Brakes ( Standard ), Oil Immersed Brakes ( Optional ) |
| Clutch Type : | Single dry disc friction plate - 280mm dia. (11”) |
| Max P.T.O.(HP) : | 32 |
|---|---|
| PTO RPM : | 1000 |
| Steering Type : | Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator. |
|---|
| Type : | Live With Position control, Automatic draft control and Mix Control |
|---|---|
| Lifting Capacity at Standard Frame : | 1000 Kgf |
| 3 Point Linkage : | 3 point linkage Category-I suitable for Category-II type implement pins |
| Total Weight : | 1895 Kg |
|---|---|
| Wheel Base : | 1950 mm |
| Overall Length : | 3470 mm |
| Overall Width : | 1695 mm |
| Ground Clearance : | 395 mm |
| Drive : | 2WD |
|---|---|
| Front Tyre : | 6.00 x 16 |
| Rear Tyre : | 12.4 x 28 Standard, 13.6 x 28 Optional |
| Wheel Track Front : | 1300 mm |
| Wheel Track Rear : | 1350 mm |
| Battery Capacity : | 12V, 88Ah |
|---|
| Website : | http://www.swarajtractors.com/ |
|---|
