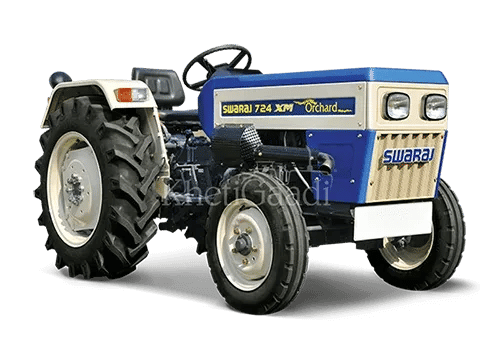

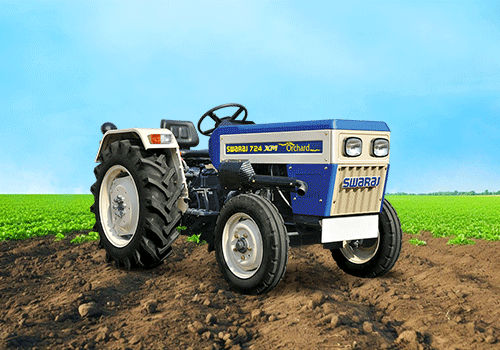

Swaraj 724 XM Orchard Tractor Specifications
| Engine Type : | 4 Stroke, Direct injection, Diesel engine |
|---|---|
| Engine Rated RPM : | 1800 |
| Engine HP : | 24 |
| Displacement CC : | 1824 |
| Bore in (mm) : | 100 |
| Stroke in (mm) : | 116 |
| Cooling System : | Water Cooled with No loss tank |
| Fuel Type : | Diesel |
| No. of Cylinder : | 2 |
| Air Cleaner / Filter : | Dry type, Dual element with dust unloader |
| Speed Forward - kmph : | 2.3 to 24.2 |
|---|---|
| Speed Reverse - kmph : | 2.29 & 9.00 |
| No. of gears Forward : | 6 |
| No. of gears Reverse : | 2 |
| Gear Box Type : | Partially Constant |
| Brakes Type : | Oil Immersed Brakes (Standard) |
| Clutch Type : | Single dry disc friction plate (Diaphragm type) |
| Max P.T.O.(HP) : | 22 |
|---|---|
| PTO RPM : | 1000 |
| Steering Type : | Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator. |
|---|
| Type : | Live With Position control, Automatic draft control and Mix Control |
|---|---|
| Lifting Capacity at Standard Frame : | 1000 Kg |
| 3 Point Linkage : | 3 point linkage Category-I suitable for Category-II type implement pins |
| Pump Type : | Gear Pump |
| Total Weight : | 1430 Kg |
|---|---|
| Wheel Base : | 1545 mm |
| Overall Length : | 2850 mm |
| Overall Width : | 1320 mm |
| Ground Clearance : | 235 mm |
| Drive : | 2WD |
|---|---|
| Front Tyre : | 5.00 x 15 |
| Rear Tyre : | 11.2 x 24 |
| Wheel Track Front : | 1060 mm |
| Wheel Track Rear : | 1034 mm |
| Battery Capacity : | 12V, 75Ah |
|---|
| Hour Meter : | YES |
|---|---|
| Rear Plough Lamp : | YES |
| Website : | http://www.swarajtractors.com/ |
|---|
