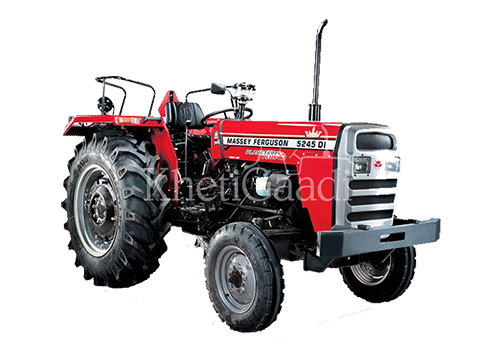

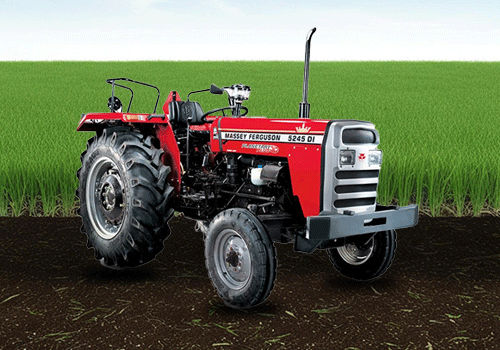

Massey Ferguson 5245 PLANETARY PLUS

Massey Ferguson 5245 Planetary Plus Tractor Specifications in Details

Engine and Performance

• The 50-horsepower Massey Ferguson 5245 DI Planetary Plus HP is available. Because of its strength, it can handle uneven surfaces and operate heavy tractor equipment, among other difficult duties.

• This tractor is equipped with a SIMPSONS SJ327 TIII A diesel engine. Its engine has 3 cylinders and a displacement of 2700 cc. Higher engine capacity results in increased power output for a variety of difficult tasks.

• An inline fuel pump is included with this tractor. Fuel shipping to the engine is done by this fuel pump.

Transmission

• A partial constant mesh gearbox is part of the gearbox system. Some gears in this gearbox are always engaged, enabling silent and smoother gear shifts.

• It also features a gear system with 8 forward and 2 reverse gears, or 10 forward and 2 reverse gears. The several gear ratios on this tractor offer the ideal speed for a range of terrains and heavy loads. The tractor has a maximum speed of 34.8 km/h.

Power-Take-Off

• The PTO speed of the Massey Ferguson 5245 DI Planetary Plus is 540 RPM. In addition, a Quadra PTO is an optional feature. Increased PTO speeds allow a greater variety of PTO-driven tools to be used, such as the Mulcher and Power Harrow.

• The PTO RPM is 540 RPM at 1790 ERPM / 540 RPM @ 1906 ERPM. A lower engine maximum speed that maximises PTO RPM ensures better fuel efficiency.

Hydraulic

• The lifting capacity of the Massey Ferguson 5245 DI Planetary Plus is 1800 kg. This enables it to handle heavy-duty equipment like disc harrows and balers and lift heavy loads.

• It includes a 3-point linkage for Categories I and II. Draft, position, and reaction control constitute the hydraulic control system.
