| Engine Type : | Kubota D1105-E2-D221 E-TVCS, Liquid cooled, 3-cylinder diesel |
|---|---|
| Engine Rated RPM : | 2600 |
| Engine HP : | 24 |
| Power KW : | 12.6 |
| Displacement CC : | 1123 |
| Bore in (mm) : | 78.03 |
| Fuel Type : | Diesel |
| No. of Cylinder : | 3 |
| Torque : | 57.7 Nm |
| Transmission Type : | Gear shift |
|---|---|
| Power Take Off (P.T.O rpm) : | 540-960 |
| No. of gears Forward : | 9 |
| No. of gears Reverse : | 3 |
| Brakes Type : | Wet disk type |
| Clutch Type : | Dry single plate |
| Max P.T.O.(HP) : | 17.4 |
|---|---|
| PTO RPM : | 540-960 |
| Steering Type : | Integral type power steering |
|---|
| Type : | Position control value |
|---|---|
| Lifting Capacity at Standard Frame : | 750 Kg |
| 3 Point Linkage : | Category I |
| Total Weight : | 625 Kg |
|---|---|
| Wheel Base : | 1563 mm |
| Overall Length : | 2410 mm |
| Overall Width : | 1105 mm |
| Ground Clearance : | 325 mm |
| Turning Radius of Brakes : | 2.1 meter |
| Drive : | 4WD |
|---|
| Website : | www.kubota.co.in |
|---|

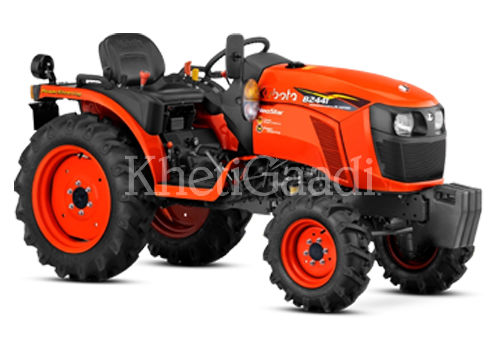

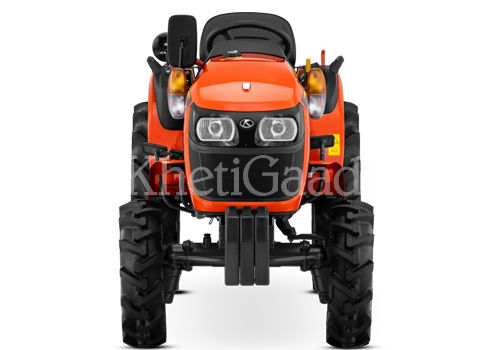

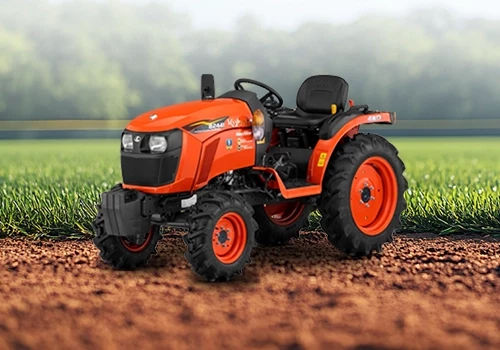

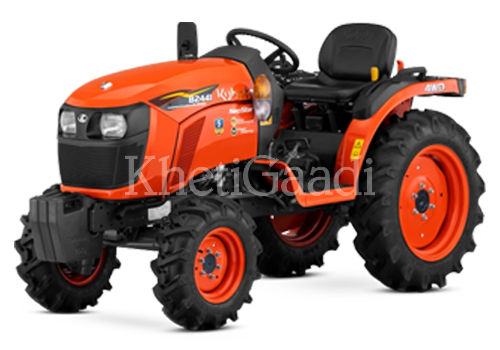

About Kubota NEO STAR B2441 4WD
Ward No. -12, Main Road, Gunderdehi ,Balod ,Chhattisgarh ,491223
Charphatak,Station Road,Chhindwara ,Chhindwara ,Madhya Pradesh ,480001
1st Floor, Shop No:9,"B" Block Parvaz Plaza Building, College Road, Hospet ,Bellary ,Karnataka ,583201
No.90 /10-11, New Market Yard, Opposite: Sardar Bank ,Patan ,Gujarat ,384265
AT / P.O. Pipili, PS Pipili Puri District ,Nayagarh ,Orissa ,752104
AT / P.O. Pipili, PS Pipili Puri District ,Puri ,Orissa
No.5C /11, Trivandrum Road, Vannarpettai ,Tirunelveli ,Tamil Nadu ,627003
Sagar Road ,Chhatarpur ,Madhya Pradesh ,471001
Vasant nagar,Opp. Nandanvan hotel,Dondaicha road,Shahada ,Nandurbar ,Maharashtra ,425409
Survey No. 436, Plort no. 65, Industrial Park, Kakuturu, Venkatachalam,Nellore Andhra Pradesh ,Nellore ,Andhra Pradesh ,524142
The B2441 24HP,liquid-cooled diesel engine with E-TVCS (three vortex combustion system) offers excellent power,high torque,cleaner emissions,low noise and low vibration.
A 2.1m Turning radius provides easy maneuverability in narrow farms and is most suitable for inter-culture operations
Position control valve provides easier 3-point Hitch control,For most 3 point usage position control valve would be preferable to up/down control system.
The dash panel features large characters and a white background, so that you can clearly keep track of functions like engine speed, engine temperature,fuel level and more.
Easy to get on & get off the tractor plenty of foot space
This must - have feature provides nimble handling while greatly reducing fatigue during long hours of operation
The 4 Wheel Drive provides better maneuverability and traction power provides option of working in wet lands without getting struck in the mud.
High ground clearance of 325 mm enables easy movement in farm lands without damaging the base of the tractor.
Use with 540 & 980 rpm PTO. use with high performance sprayers and a variety of other impliments.
