| Engine Type : | 3 Cylinders, 65 HP, 2400 RPM, Rotary FIP, Turbo charged |
|---|---|
| Engine Rated RPM : | 2400 |
| Engine HP : | 65 |
| Cooling System : | Coolant cooled with overflow reservoir |
| Fuel Type : | Diesel |
| Fuel Pump : | Rotary FIP |
| No. of Cylinder : | 3 |
| Air Cleaner / Filter : | Dry type, Dual element |
| Transmission Type : | 9 Forward + 3 Reverse speed, Collarshift |
|---|---|
| Speed Reverse - kmph : | 24 |
| Power Take Off (P.T.O rpm) : | 540 |
| No. of gears Forward : | 9 |
| No. of gears Reverse : | 3 |
| Gear Box Type : | 9 Forward + 3 Reverse speed, Collarshift |
| Front Axel : | Heavy duty variable track |
| Brakes Type : | Self Adjusting, Self equalizing, Hydraulically Actuated oil immersed disc brakes |
| Clutch Type : | Dual |
| P.T.O. Type : | Independent, 6 Splines |
|---|---|
| PTO RPM : | 540 |
| Steering Type : | Power |
|---|
| Lifting Capacity at Standard Frame : | 2000 kgf at lower link ends |
|---|---|
| 3 Point Linkage : | Category II Automatic Depth & Draft Control |
| Total Weight : | 2290 Kg |
|---|---|
| Wheel Base : | 2050 mm |
| Overall Length : | 3535 mm |
| Overall Width : | 1890 mm |
| Ground Clearance : | 510 mm |
| Turning Radius of Brakes : | 3099 mm |
| Drive : | 2WD |
|---|
| Battery Capacity : | 88 Ah, 12 Volt |
|---|---|
| Starter Motor : | 2.5 kW |
| Alternator : | 40 Amp |
| Website : | http://www.deere.co.in |
|---|---|
| Optional Accessories : | Ballast Weight, Canopy, Wagon Hitch, Tow Hook, Drawbar |

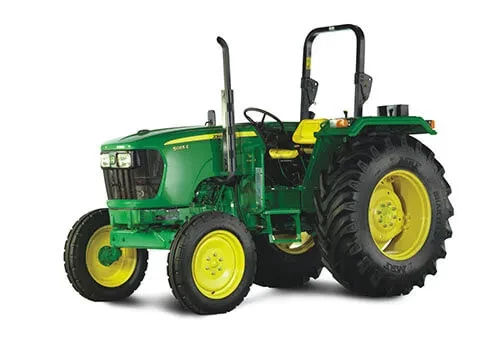

About John Deere 5065E
Village Kothi Chowk (Near Vyas Hospital) P.O. Chandpur, Tehsil Sadar, Dist. Bilaspur ,Bilaspur ,Chhattisgarh ,174004
Near Bus Stand, C.K.Road, District Medinipore Chandrakona Road ,Bhadrak ,Orissa
Pakhi Bagan P.O Abash ,Midnapore ,West Bengal ,721102
Inda O.T. Road District-Paschi, Medinipore ,Kharagpur ,West Bengal ,721805
Kulibazar, Belda ,Paschim Medinipur ,West Bengal ,721424
Opposite Grain Mandi Mandi Road, Alanpur ,Sawai Madhopur ,Rajasthan ,322001
Chapar Colony Khandar-Sawai madhopur Road, Khandar ,Sawai Madhopur ,Rajasthan ,322033
Plot No.:8,Rs No-138,Apmc Road ,Gokak ,Karnataka ,591307
Door No. 3/626, Shop No.1, P.K.M Complex M.M. Nagar, Nh-7 Road, Palayam Kottai ,Tirunelveli ,Tamil Nadu ,627151
No.:10/34, Main Road, Thovalai ,Kanyakumari ,Tamil Nadu
Oil-immersed disk brakes provide durability and long life
Tiltable steering column The tiltable steering feature is available on the premium version 5E models. The tiltable steering column provides multiple positions to adjust the steering wheel. The operator can choose the most comfortable driving position, thus reducing fatigue and aiding in easy entrance and exit.
The 5E engines are designed with high torque reserve of around 20-25 percent. Backup torque is the ability of the machine to keep working as the engine pulls down due to increased load requirements over and above the maximum power. This backup torque prevents temporary overload, and frequent gear shifting during haulage and tillage applications, thus reducing operator fatigue.
The 12F/12R PowrReverser transmission is ideal for heavy applications on 3-cylinder 5E Tractors. The John Deere built PowrReverser transmission provides 12 forward speeds and 12 reverse speeds (12F/12R) for operators requiring additional operating ranges, useful for field work and other applications. The PowrReverser transmission is equipped with a shiftable 540/540 Economy PTO. This transmission is ideal for operators using their tractors to perform in heavy applications.
The 5E Series Tractor straddle-mount operator station is designed to position the operator further forward and slightly lower than most other tractors in this class. This design improves the operator's ride and visibility.
EQRL switches are ergonomically located on both front and rear sides. During headland turns, front EQRL switches allow the operator to quickly raise and lower the hitch without operating the PC and DC levers. EQRL switches located on the left-hand rear fender allow the operator to quickly hitch and unhitch an implement, thus helping to maintain the same depth and position throughout the field. This results in less fatigue for the operator, ultimately increasing productivity.
A limited-slip, heavy-duty MFWD front axle provides operators with increased drawbar pull and improved traction when operating under slippery conditions. This ensures the operator gets the required torque to the ground for applications that demand more from the tractor. The MFWD front axle also reduces wheel slippage with less tractor ballasting for reduced soil compaction, increased fuel economy, and longer tire life.
An accurate, easy-to-read electronic instrument panel, featuring backlighting for excellent night visibility, monitors these key tractor operating and performance functions: Tractor speed Service hours Tractor running hours for a job Total tractor running hours Battery voltage
A spacious straddle-mount design with side-mounted control levers makes it is ergonomical for the operator, and renders these products suitable for ag as well as commercial applications.
The 540/540 economy PTO allows operators to select the engine rpm for reduced fuel consumption, reduced noise levels, reduced vibration, and less wear and tear on the engine, while at the same time keeping the proper 540 rpm at the PTO.
