Piston spray jet in addition to pressure-lubrication system

Reduces maintenance costs Increases life of the engine Maximize engine overhaul period

Mechanical quick raise and lower (MQRL) - Saving time and enhancing productivity

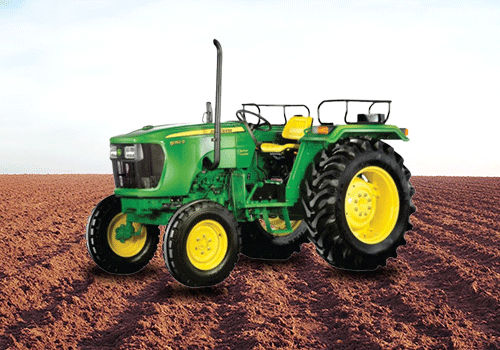

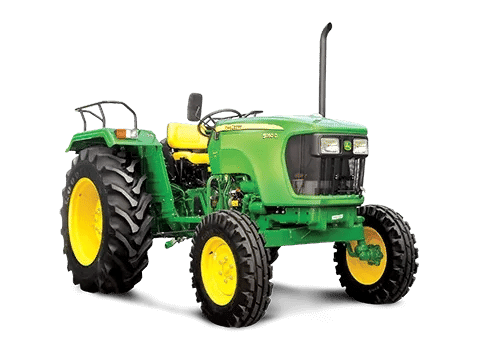

John Deere 5D Series Tractors have MQRL which gives feasibility of lifting implements to the intended position without disturbing the position control (PC) and draft control (DC) levers at a headland turn

Dry-type air filter 99.9 percent cleaning efficiency

Easy to service compared to the oil bath air cleaner 5D single-piece hood opening provides better accessibility to air filter

Power steering

Smooth steering without reverse jerk on steering wheel from steering system Low steering operating efforts Enhanced operator comfort

High engine torque - Prevents temporary overload with high engine torque

Dual clutch - Economical and durable clutch

Nonstop/independent PTO operation Better traction/transmission clutch life Lower service cost

Engine oil cooler - Cools engine oil and ensures longer life

It gives higher engine efficiency in delivering output Increases life of engine and provides higher durability

Inboard planetary final drives Higher load sustainability and higher durability

Inboard design also permits a wide range of wheel tread adjustments so operators can accomplish more with just one tractor by having the ability to custom set tire treads to meet the specific demands of a variety of tasks.

Wet-disc brakes Provide durability and longer life

Effectively dissipate the heat generated during braking Higher braking efficiency Longer brake disc and system life
