| Engine Type : | John Deere 3029D, 50 HP, 2100 RPM, 3 Cylinders, Coolant Cooled with Overflow reservoir,Turbo Charged |
|---|---|
| Engine Rated RPM : | 2100 |
| Engine HP : | 50 |
| Cooling System : | Coolant cooled with overflow reservoir |
| Fuel Type : | Diesel |
| No. of Cylinder : | 3 |
| Air Cleaner / Filter : | Dry Type, Dual Element |
| Transmission Type : | 8 Forword + 4 Reverse, Collarshift |
|---|---|
| Linkage Category : | Category- II Automatic Depth and Draft Control |
| Speed Reverse - kmph : | 14.10 |
| No. of gears Forward : | 8 |
| No. of gears Reverse : | 4 |
| Gear Box Type : | Collarshift |
| Brakes Type : | Oil Immersed Disc Brakes |
| Clutch Type : | Single/Dual |
| P.T.O. Type : | Independent, 6 Splines |
|---|---|
| PTO RPM : | 540 |
| Steering Type : | Power |
|---|
| Lifting Capacity at Standard Frame : | 1600 Kgf |
|---|---|
| 3 Point Linkage : | Category- II Automatic Depth and Draft Control |
| Total Weight : | 1975 Kg |
|---|---|
| Wheel Base : | 1970 mm |
| Overall Length : | 3430 mm |
| Overall Width : | 1830 mm |
| Ground Clearance : | 430 mm |
| Turning Radius of Brakes : | 2900 |
| Drive : | 4 WD |
|---|---|
| Front Tyre : | 6.0 x 6, 8 PR, 7.5 x 6, 8 PR ( Optional ) |
| Rear Tyre : | 14.9 x 28, 12 PR, 16.9 x 28, 12 PR ( Optional ) |
| Battery Capacity : | 88 Ah, 12 V |
|---|---|
| Starter Motor : | 2.5 kw |
| Alternator : | 40 Amp |
| Optional Accessories : | Ballast Weights, Canopy, Canopy holder, Draw bar, Tow hook, Wagon Hitch |
|---|

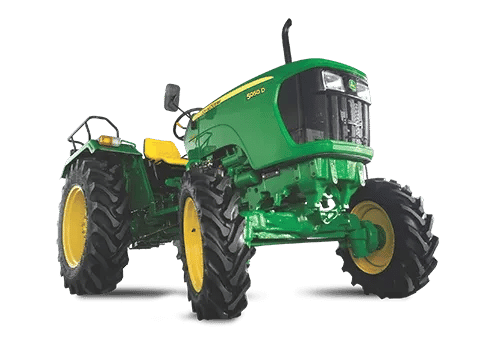

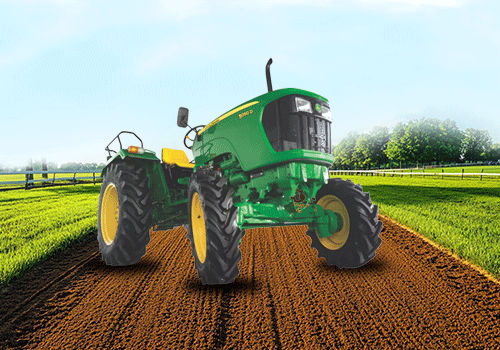

About John Deere 5050D 4WD
