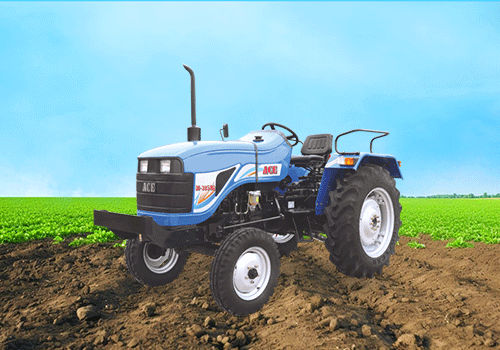

ACE DI-305 NG

2WD
HP Category : 26 HP
Displacement CC in : 2044 CC
No. of cylinder : 2 Cylinder
Max PTO (HP) : 23.8 HP
Gear Box Type : 8 forward and 2 reverse
Price : 4.35 Lakh - 4.55 Lakh
Ex-Showroom

ACE DI-305 NG Tractor has the comfort and convenience features to keep you smiling even during the longest days

  • 26 HP
  • 2WD
  • 2044 CC
  • 2 Cylinder
  • 23.8 HP
  • 8 forward and 2 reverse

Introduction

The ACE DI‑305NG is a robust 25.7 HP (approximately 26 HP), two-cylinder, 2WD tractor designed for medium-sized agricultural and haulage jobs. Based on the 2,044cc water-cooled DI engine, it is developed for high performance and cost-effectiveness.

Specifications


Engine & Performance

Power: 25.7 HP @ 1,800 RPM

Displacement: 2,044 , two cylinders

Cooling: Water Cooled with Dry Type Air Filter

PTO: 6 splines, 540 rpm, 23.8 HP to conventional 4WD transmission.

Transmission & Speeds

Transmission: 8-speed forward + 2-speed reverse (partial, constant mesh)

Transmission: Single dry friction plate (some sources say double)

Forwards: 2.29-27.78 km/h; Backwards: 2.86-11.31 km

Hydraulics & PTO

3-point linkage with ADDC

Lift capacity: 1,200 kg

Brakes & Steering

Brakes: Dry disc (Some have wet disc)

Control: Single drop-arm mechanical type

Dimensions & Weight

Weight: ~1,780 kg (dry)

Wheelbase: 1,855 mm

Length: 3,550 mm

Width: ~1,700mm (up to 1,740 mm, reportedly by one source)

Height: ~2,270 mm (varies)

Ground clearance: ~395 mm

Turning radius (with brake): ~2.94 m

Tyres

Front: 6.00 × 16 – 8 PR

Rear: 12.4x28 - 12PR (some say 13.6x28)

Fuel tank: 55 L

Battery: 12V 75Ah (some say 88Ah)

Alternator: 12 V, 42 A


Benefits

Multi-tasking Power: 25-26 hp engine delivers power for field and haulage work.

Simple & Tough: Mechanical steering, dry clutch, and disc brake—easy for maintenance.

Speed Change: 8F+2R gears shift on a wide range of applications.

Powerful hydraulics ADDC linkage makes it lift 1.2t, suitable for various implements.

Build to Trust: Sturdy body and strong steel axles with solid tires for Indian farm conditions.

Large Tank: 55L tank for long working time.

Warranty Coverage (2/2,000 Vc): Provides 2 years (up to 2,000 hours) of warranty coverage

Features

Engine Power: 26 HP

PTO Power: 23.8 HP

Transmission: 8 Speeds Forward 2 Speeds Reverse

Steering Type: Mechanical

Lifting Capacity: 1200 kg

Fuel Tank Capacity: 55 liters

Brakes: Dry Disc Brakes

Wheel Drive: 2WD

Best Price

The ACE DI-305NG falls in the budget bracket of 4.35 lakh to 4.55 lakh, which is an affordable range in which farmers can get a decent tractor.

Other Details

Fuel Economy: For durability- and cost-driven consumers.

Stable Operation: It has a water-cooled, naturally aspirated engine to ensure stable operation.

WIDELY USED: Used for multifunctional purposes, such as farm work, planting, and shipping.
