| Engine Type : | Direct Injection water cooled |
|---|---|
| Emission Standard : | Bharat 3A |
| Engine Rated RPM : | 2100 |
| Engine HP : | 49.5 |
| Power KW : | 36.4 |
| Displacement CC : | 3065 |
| Bore in (mm) : | 105 |
| Stroke in (mm) : | 118 |
| Fuel Pump : | Inline |
| Cylinder Capacity cc : | 3065 |
| No. of Cylinder : | 3 |
| Torque : | 200 |
| Air Cleaner / Filter : | Dry Type |
| Linkage Category : | cat I / II |
|---|---|
| Max Speed : | 2.7/ 35.1 |
| Speed Reverse - kmph : | 3.76 / 14.85 |
| Power Take Off (P.T.O rpm) : | 540 |
| No. of gears Forward : | 8 |
| No. of gears Reverse : | 2 |
| Gear Box Type : | Sliding |
| Front Axel : | Live axle |
| Brakes Type : | Dry Disk (servicable) / Oil immersed (Optional) |
| Clutch Type : | Dual clutch |
| P.T.O. Type : | Live -6 splines |
|---|---|
| PTO RPM : | 540 |
| Steering Type : | Power |
|---|
| Type : | Live |
|---|---|
| Lifting Capacity at Standard Frame : | 1800 |
| 3 Point Linkage : | cat I / II |
| Pump Type : | Gear Type |
| Lower Link : | Cat-II |
| Total Weight : | 2240 Kg |
|---|---|
| Height : | 2360 mm |
| Wheel Base : | 2050 mm |
| Overall Length : | 3790 mm |
| Overall Width : | 1835 mm |
| Ground Clearance : | 341 mm |
| Turning Radius of Brakes : | 3.85 meter |
| Turning Radius w. o. Brakes : | 4.78 meter |
| Drive : | 4WD |
|---|---|
| Front Tyre : | 8.00x18 |
| Rear Tyre : | 13.6x28/14.9x28 |
| Wheel Track Rear : | 1740 |
| Battery Capacity : | 88 AH - 12 V |
|---|---|
| Battery Type : | Lead Acid |
| Alternator : | 12 V-42 A |
| Horn : | Electromagnetically vibrated diaphragm |
| Indicator & Gauge : | yes |
| Electrical System : | yes |
| Electrical Overview : | yes |
| Fuel Indicator : | yes |
|---|---|
| Coolant Temp/Water Temp gauge : | yes |
| Head Lamp(Low/High Beam) : | yes |
| Battery Indicator/Charging : | yes |
| Engine Oil Indicator : | yes |
| Hour Meter : | yes |
| Air Cleaner Clogging Sensor : | yes |
| Rear Plough Lamp : | yes |
| Parking Brake : | yes |
| On Board Instruments(Analog/Digital) : | Digital |
| Website : | www.ace-cranes.com |
|---|

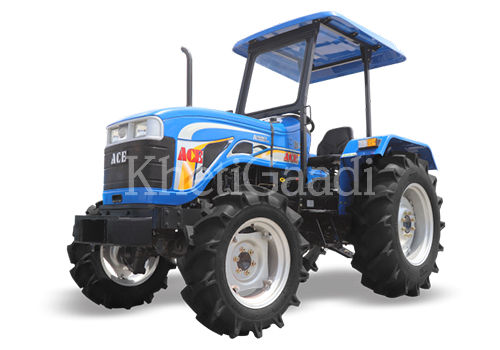

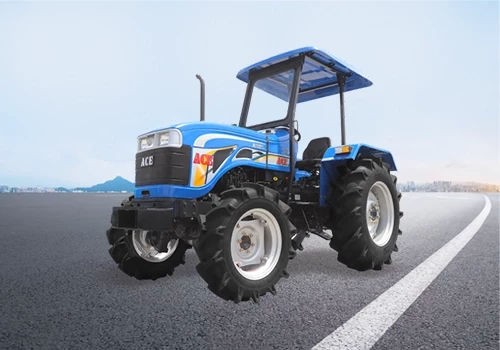

About ACE DI 550NG 4WD
