ACE DI 450 (Star) Specifications

Engine Type : Direct Injection water cooled
Emission Standard : Bharat 3A
Engine Rated RPM : 2000
Engine HP : 45
Power KW :33.1
Displacement CC :3120
Bore in (mm) :105
Stroke in (mm) : 120
Fuel Pump :Inline
Cylinder Capacity cc :3120
No. of Cylinder :3
Torque : 180
Air Cleaner / Filter :Dry Type
Linkage Category : cat I / II
Speed Reverse - kmph :3.1/12.1
Power Take Off (P.T.O rpm) :540
No. of gears Forward :8
No. of gears Reverse :2
Gear Box Type :Sliding
Front Axel :Rigid/adjustable
Brakes Type :Dry Disk (servicable) / Oil immersed (Optional)
Clutch Type :Dual
P.T.O. Type :Live -6 splines
PTO RPM : 540
Steering Type :Mechanical / Power steering
Type :Live
Lifting Capacity at Standard Frame :1800
3 Point Linkage :cat I / II
Pump Type :Gear Type
Lower Link :Cat-II
Total Weight :2010 Kg
Height :2370 mm
Wheel Base :2140 mm
Overall Length :3800 mm
Overall Width :1740 mm
Ground Clearance :430 mm
Turning Radius of Brakes :3.03 Meter
Turning Radius w. o. Brakes :3.4 Meter
Drive : 2WD
Front Tyre :6.00 x 16 / 7.50 x 16
Rear Tyre :13.6 x 28 / 14.9 x 28
Wheel Track Rear :1360
Battery Capacity :88 AH - 12 V
Battery Type :Lead Acid
Alternator :12 V-42 A
Horn :Electromagnetically vibrated diaphragm
Indicator & Gauge :yes
Electrical System :yes
Electrical Overview :yes
Fuel Indicator :yes
Coolant Temp/Water Temp gauge :yes
Head Lamp(Low/High Beam) :yes
Battery Indicator/Charging :yes
Engine Oil Indicator :yes
Hour Meter :yes
Air Cleaner Clogging Sensor :yes
Rear Plough Lamp :yes
Parking Brake :yes
On Board Instruments(Analog/Digital) :Digital
Website :www.ace-cranes.com

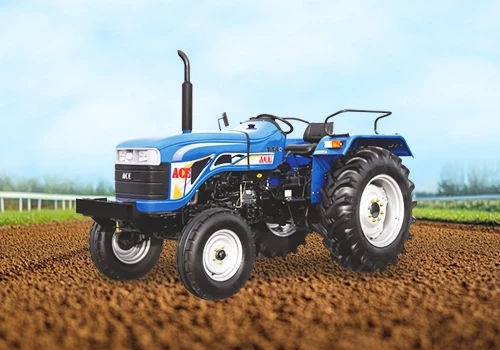

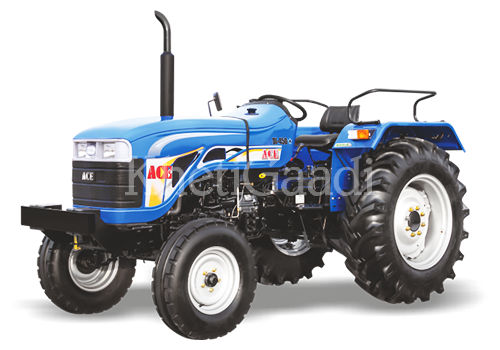

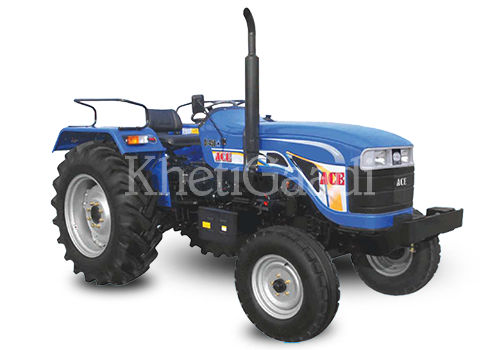

ACE DI 450 (Star)
