| Engine Type : | 4 Stroke, Direct injection, Diesel engine |
|---|---|
| Engine Rated RPM : | 1800 |
| Engine HP : | 24 |
| Cooling System : | Water Cooled |
| Fuel Type : | Diesel |
| No. of Cylinder : | 2 |
| Air Cleaner / Filter : | Dry type,Dual element with dust unloader |
| Transmission Type : | Sliding Mesh & Range gears in Constant Mesh |
|---|---|
| Max Speed : | 2.2 to 23.3 kmph |
| Speed Reverse - kmph : | 2.2 & 8.7 kmph |
| Power Take Off (P.T.O rpm) : | 540 |
| No. of gears Forward : | 6 |
| No. of gears Reverse : | 2 |
| Brakes Type : | Oil Immersed Brakes |
| Clutch Type : | Single Clutch (Diapharam type) with Mechanical actuation |
| PTO RPM : | 540 |
|---|
| Steering Type : | Hydrostatic Power Steering |
|---|
| Type : | Live Hydraulics A) Position control:To hold lower links at any desired height. B) Automatic draft control:To maintain uniform draft |
|---|---|
| Lifting Capacity at Standard Frame : | 1000 kgf at lower link ends |
| 3 Point Linkage : | 3 point linkage Category-I suitable for Category-II type implement pins |
| Total Weight : | 1440 Kg |
|---|---|
| Wheel Base : | 1550 mm |
| Overall Length : | 2900 mm |
| Overall Width : | 1092 mm |
| Ground Clearance : | 220 mm |
| Drive : | 2WD |
|---|---|
| Wheel Track Front : | 970 mm |
| Wheel Track Rear : | 840 mm |
| Battery Capacity : | 12 volt, 75 Ah |
|---|
| Website : | http://www.mahindratractor.com |
|---|

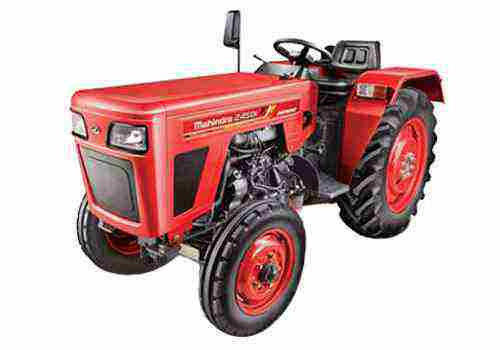

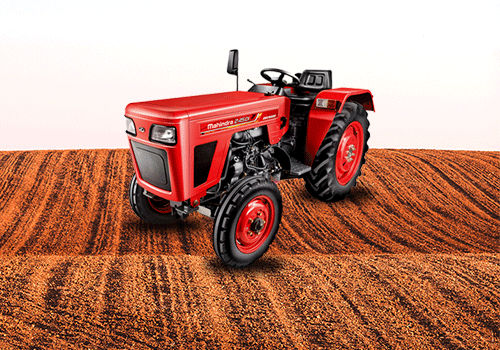

About Mahindra 245 DI Orchard
