New Holland 3230 Nx Specifications
Specifications
Engine
| Engine type | Simpsons, TIIIA S325 |
|---|---|
| Engine rated RPM | 2000 RPM |
| Engine HP | 42 HP |
| Displacement CC in | 2500 CC |
| No. of cylinder | 3 Cylinder |
| Max Torque - Nm | 1400 Nm |
| Air Cleaner / Filter | Oil Bath With Pre Cleaner |
| Cooling System | Water Cooled |
| Emission standard | NA |
| Fuel type | Diesel |
| Fuel Pump Type | NA |
| Power KW | NA |
| stroke in (mm) | NA |
| Bore in (mm) | NA |
| Fuel Pump Capacity | NA |
| Fuel Tank Capacity | 42 ltrs |
| Dry Weight kg | NA |
| Height | NA |
| Starter Motor | NA |
| Accessories | NA |
| Shifting Type | NA |
| Hydraulics | 1500 kg |
Transmission
| Transmission type | Constant Mesh |
|---|---|
| No. of gears Forward | 8 |
| No. of gears Reverse | 2 |
| Speed Forward - kmph | 2.5 - 30.5 kmph |
| Speed Reverse - kmph | 3.1 - 12.2 kmph |
| Brakes type | Mechanical, Real Oil Immersed Brakes |
| clutch type | Single/Double Clutch |
| Gear Box Type | 8 Forward + 2 Reverse |
| Front Axle | NA |
| Rear Axle | NA |
Power Take Off
| Max PTO (HP) | 39 PTO HP |
|---|---|
| PTO RPM @ engine, rpm | 540 |
| PTO Type | 6 Spline |
| PTO Speed | NA |
Steering
| Steering Column | NA |
|---|---|
| Steering type | Mechanical/Power Steering |
Hydraulic
| Lifting Capacity Max. | 1500 kg |
|---|---|
| 3 Point Linkage | Category I & II, Automatic Depth & Draft Control |
| Spool Valve | NA |
| Type | Lift-O-Matic, Sensitivity Control, Drop Rate Control |
Dimensions & Weight
| Ground Clearance | 385 mm |
|---|---|
| Total Weight | 1760 kg |
| Turning radius With Brake | 3010 mm |
| Turning radius Without Brake | NA |
| Overall Length | 3270 mm |
| Overall Width | 1682 mm |
| Wheel Base | 1910 mm |
Wheels & Tyres
| Tyre Size Front | 6.0 x 16 mm |
|---|---|
| Tyre Size Rear | 13.6 .x 28 mm |
| Type Front | NA |
| Type Rear | NA |
Electrical
| Battery Capacity | 12 V 75 Ah |
|---|---|
| Alternator | 12 V 23 A |
| Battery Type | NA |
Know More

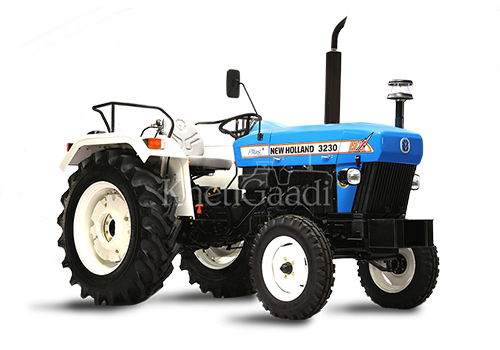

New Holland 3230 Nx Tractor
The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get New Holland 3230 Nx tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. New Holland 3230 Nx tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.
If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. New Holland is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. New Holland 3230 Nx has 42 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.
Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 41-50 HP Range in New Holland 3230 Nx. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. New Holland 3230 Nx tractor has 2WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.
New Holland 3230 Nx tractor has 2500 CC CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor New Holland 3230 Nx has 3 Cylinder number of cylinders. You will get 39 PTO HP PTO HP in the tractor New Holland 3230 Nx.
This tractor provides a 8 Forward + 2 Reverse gearbox.
So, if you are looking for the purchase of the tractor go through the official links, websites, and dealers and services like Khetigaadi that provide reliable information to the customers.
