John Deere 6120B 4WD-AC CAB Specifications
Specifications
Engine
| Engine type | 120 HP (89.5 KW), 4 Cylinders Turbo Charged High Pressure Common Rail With Electronically Controlled Fuel Injection Unit, Power Tech Engine |
|---|---|
| Engine rated RPM | 2400 RPM |
| Engine HP | 120 HP |
| Displacement CC in | 4000 CC |
| No. of cylinder | 4 |
| Max Torque - Nm | NA |
| Air Cleaner / Filter | Dry Type |
| Cooling System | Liquid Cooled |
| Emission standard | NA |
| Fuel type | Diesel |
| Fuel Pump Type | NA |
| Power KW | NA |
| stroke in (mm) | NA |
| Bore in (mm) | NA |
| Fuel Pump Capacity | NA |
| Fuel Tank Capacity | 220 ltrs |
| Dry Weight kg | NA |
| Height | NA |
| Starter Motor | 2.5 kw |
Transmission
| Transmission type | Synchromesh |
|---|---|
| No. of gears Forward | 12 |
| No. of gears Reverse | 4 |
| Speed Forward - kmph | 3.1 - 30.9 kmph |
| Speed Reverse - kmph | 6.0 - 31.9 kmph |
| Brakes type | Oil Immersed Disc Brakes |
| clutch type | Dual Clutch |
| Gear Box Type | 12 Forward + 4 Reverse Collarshift |
| Front Axle | NA |
| Rear Axle | NA |
Power Take Off
| Max PTO (HP) | 102.0 PTO HP |
|---|---|
| PTO RPM @ engine, rpm | 540 |
| PTO Type | Independent, 6 Splines/21 Splines |
| PTO Speed | NA |
Steering
| Steering Column | NA |
|---|---|
| Steering type | Power Steering |
Hydraulic
| Lifting Capacity Max. | 3650 kg |
|---|---|
| 3 Point Linkage | Category II Automatic Depth & Draft Control |
| Spool Valve | NA |
| Type | NA |
Dimensions & Weight
| Ground Clearance | 470 mm |
|---|---|
| Total Weight | 4500 kg |
| Turning radius With Brake | NA |
| Turning radius Without Brake | NA |
| Overall Length | 4410 mm |
| Overall Width | 2300 mm |
| Wheel Base | 2560 mm |
Wheels & Tyres
| Tyre Size Front | 14.9 x 24 mm |
|---|---|
| Tyre Size Rear | 18.4 x 38 mm |
| Type Front | NA |
| Type Rear | NA |
Electrical
| Battery Capacity | 12 V 135 Ah |
|---|---|
| Alternator | 90 A |
| Battery Type | NA |
Know More

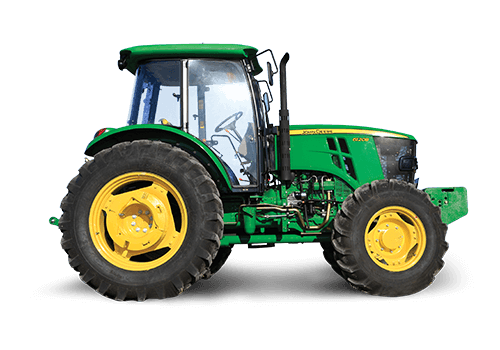

John Deere 6120B 4WD-AC CAB Tractor
The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get John Deere 6120B 4WD-AC CAB tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. John Deere 6120B 4WD-AC CAB tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.
If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. John Deere is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. John Deere 6120B 4WD-AC CAB has 120 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.
Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 111-120 HP Range in John Deere 6120B 4WD-AC CAB. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. John Deere 6120B 4WD-AC CAB tractor has 4WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.
John Deere 6120B 4WD-AC CAB tractor has 4000 CC CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor John Deere 6120B 4WD-AC CAB has 4 number of cylinders. You will get 102.0 PTO HP PTO HP in the tractor John Deere 6120B 4WD-AC CAB.
This tractor provides a 12 Forward + 4 Reverse Collarshift gearbox.
