John Deere 5305 Specifications

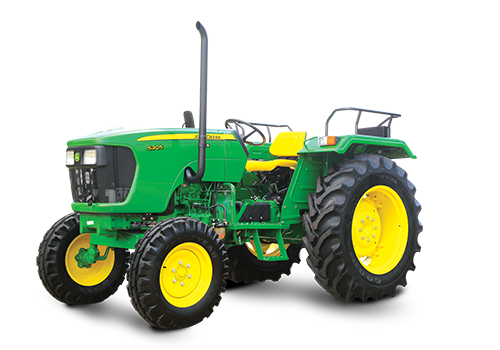

John Deere 5305

2WD 7.1 - 7.3 Lakh Get On Road Price



Engine type John Deere 3029T, 55 HP (41 kW), 2400 RPM, 3 Cylinders, Coolant Cooled With Overflow Reservoir, Turbo Charged
Engine rated RPM 2400 RPM
Engine HP 55 HP
Displacement CC in NA
No. of cylinder 3 Cylinder
Max Torque - Nm NA
Air Cleaner / Filter Dry Type, Dual Element
Cooling System Coolant Cooled With Overflow Reservoir
Emission standard NA
Fuel type Diesel
Fuel Pump Type NA
Power KW NA
stroke in (mm) NA
Bore in (mm) NA
Fuel Pump Capacity NA
Fuel Tank Capacity 60 ltrs
Dry Weight kg NA
Height NA
Starter Motor 2.5 kw
Accessories Ballast Weight, Canopy, Canopy Holder, Tow Hook, Drawbar, Wagon Hitch
Shifting Type NA


Transmission type Collar Shift
No. of gears Forward 8
No. of gears Reverse 4
Speed Forward - kmph 3.18 - 33.48 kmph
Speed Reverse - kmph 4.22 - 14.90 kmph
Brakes type oil immersed disc brakes
clutch type Single / Dual clutch
Gear Box Type 8 Forward + 4 Reverse, Collarshift
Front Axle NA
Rear Axle NA

Power Take Off

Max PTO (HP) 46.8 PTO HP
PTO RPM @ engine, rpm 540
PTO Type Independent, 6 Splines
PTO Speed NA


Steering Column NA
Steering type Power Steering


Lifting Capacity Max. 1600 kg
3 Point Linkage Category II,Automatic Depth & Draft Control
Spool Valve NA
Type NA

Dimensions & Weight

Ground Clearance 430 mm
Total Weight 1920 mm
Turning radius With Brake 2900 mm
Turning radius Without Brake NA
Overall Length 3420 mm
Overall Width 1810 mm
Wheel Base 1960 mm

Wheels & Tyres

Tyre Size Front 6.0 x 16 mm, 8 PR, 7.5 x 16 mm, 8 PR ( Optional )
Tyre Size Rear 14.9 x 28 mm, 12 PR, 16.9 x 28 mm, 12 PR ( Optional )
Type Front NA
Type Rear NA


Battery Capacity 12 V 88 Ah
Alternator 40 A
Battery Type NA


John Deere 5305 Tractor

The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get John Deere 5305 tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. John Deere 5305 tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.

If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. John Deere is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. John Deere 5305 has 55 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.

Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 51-60 HP Range in John Deere 5305. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. John Deere 5305 tractor has 2WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.

John Deere 5305 tractor has NA CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor John Deere 5305 has 3 Cylinder number of cylinders. You will get 46.8 PTO HP PTO HP in the tractor John Deere 5305.

This tractor provides a 8 Forward + 4 Reverse, Collarshift gearbox.

So, if you are looking for the purchase of the tractor go through the official links, websites, and dealers and services like Khetigaadi that provide reliable information to the customers.
