John Deere 5075E 4WD Specifications

tractor

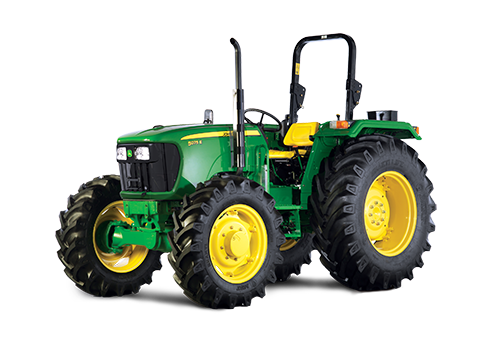

John Deere 5075E 4WD

4WD 12.6 Lakh - 13.2 Lakh Get On Road Price

Specifications

John Deere 5075E 4WD Engine
Engine type 75 HP (55.9 KW), 2400 RPM, 3 Cylinder, Direct Injection, Turbo Charged, Rotary FIP Pump, Coolant Cooled With Overflow Reservoir
Engine rated RPM 2400 RPM
HP Category 75 HP
No. of cylinder 3 Cylinder
Air Cleaner / Filter Dry Type, Dual Element
Cooling System Coolant Cooled With Overflow Reservoir
Fuel type Diesel
Power KW 44.6 KW
Starter Motor 2.5
Accessories Ballast Weights, Canopy, Wagon Hitch, Drawbar
John Deere 5075E 4WD Transmission
Transmission type Synchromesh Transmission (TSS)
No. of gears Forward 9 Forward
No. of gears Reverse 3 Reverse
Speed Forward - kmph 2.2 - 28.3 Kmph
Speed Reverse - kmph 3.7 - 24.2 Kmph
Brakes type Oil Immersed Disc Brakes
clutch type Dual Clutch
Gear Box Type 9 Forward + 3 Reverse
Front Axle Specially Designed Heavy Duty Front Axle For MFWD
John Deere 5075E 4WD Power Take Off
Max PTO (HP) 63.7 HP
PTO RPM @ engine, rpm 540 @ 2376 RPM
PTO Type Independent, 6 Splines
John Deere 5075E 4WD Steering
Steering type Power Steering
John Deere 5075E 4WD Hydraulic
Lifting Capacity Max. 1800 Kg
3 Point Linkage Category II Automatic Depth & Draft Control
John Deere 5075E 4WD Dimensions & Weight
Ground Clearance 460 Nm
Total Weight 2640 Kg
Turning radius With Brake 3604 Nm
Overall Length 3625 mm
Overall Width 1880 mm
Wheel Base 2045 mm
John Deere 5075E 4WD Wheels & Tyres
Tyre Size Front 12.4 x 24
Tyre Size Rear 18.4 x 30
John Deere 5075E 4WD Electrical
Battery Capacity 12 V 100 Ah AH
Alternator 40 A

John Deere 5075E 4WD Tractor

The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get John Deere 5075E 4WD tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. John Deere 5075E 4WD tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.

If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. John Deere is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. John Deere 5075E 4WD has 75 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.

Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 71-80 HP Range in John Deere 5075E 4WD. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. John Deere 5075E 4WD tractor has 4WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.

John Deere 5075E 4WD tractor has 3 CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor John Deere 5075E 4WD has 9 Forward + 3 Reverse number of cylinders. You will get PTO HP in the tractor John Deere 5075E 4WD.

This tractor provides a 63.7 gearbox.

So, if you are looking for the tractor price of the tractor go through the official links, websites, and dealers and services like Khetigaadi that provide reliable information to the customers.
