John Deere 5060E PR Specifications
Specifications
Engine
| Engine type | 60 HP (44.7 KW), 2400 RPM, 3 Cylinder, Direct Injection, Turbo Charged, Rotary FIP, Liquid Cooled With Overflow Reservoir |
|---|---|
| Engine rated RPM | 2400 RPM |
| Engine HP | 60 HP |
| Displacement CC in | NA |
| No. of cylinder | 3 Cylinder |
| Max Torque - Nm | NA |
| Air Cleaner / Filter | Dry Type, Dual Element |
| Cooling System | Liquid Cooled |
| Emission standard | NA |
| Fuel type | Diesel |
| Fuel Pump Type | NA |
| Power KW | NA |
| stroke in (mm) | NA |
| Bore in (mm) | NA |
| Fuel Pump Capacity | NA |
| Fuel Tank Capacity | 68 ltrs |
| Dry Weight kg | NA |
| Height | NA |
| Starter Motor | 2.5 kw |
| Accessories | Ballast Weight, Canopy, Canopy Holder, Tow Hook, Drawbar, Wagon Hitch |
| Shifting Type | NA |
Transmission
| Transmission type | Top Shaft Synchromesh (TSS) |
|---|---|
| No. of gears Forward | 12 |
| No. of gears Reverse | 12 |
| Speed Forward - kmph | 1.7 - 33.7 kmph |
| Speed Reverse - kmph | 1.7 - 36.8 kmph |
| Brakes type | Oil Immersed Disc Brakes |
| clutch type | Dual Clutch |
| Gear Box Type | 12 Forward + 12 Reverse Top Shaft Synchromesh (TSS) |
| Front Axle | NA |
| Rear Axle | NA |
Power Take Off
| Max PTO (HP) | NA |
|---|---|
| PTO RPM @ engine, rpm | 540 |
| PTO Type | Independent, 6 Splines |
| PTO Speed | NA |
Steering
| Steering Column | NA |
|---|---|
| Steering type | Power Steering |
Hydraulic
| Lifting Capacity Max. | 2000 kg |
|---|---|
| 3 Point Linkage | Category II, Automatic Depth & Draft Control |
| Spool Valve | NA |
| Type | NA |
Dimensions & Weight
| Ground Clearance | NA |
|---|---|
| Total Weight | 2255 kg |
| Turning radius With Brake | NA |
| Turning radius Without Brake | NA |
| Overall Length | 3530 mm |
| Overall Width | 1850 mm |
| Wheel Base | 2050 mm |
Wheels & Tyres
| Tyre Size Front | 6.5 x 20 mm, 8 PR |
|---|---|
| Tyre Size Rear | 16.9 x 30 mm, 12 PR |
| Type Front | NA |
| Type Rear | NA |
Electrical
| Battery Capacity | 12 V 85 Ah |
|---|---|
| Alternator | 43 A |
| Battery Type | NA |
Know More

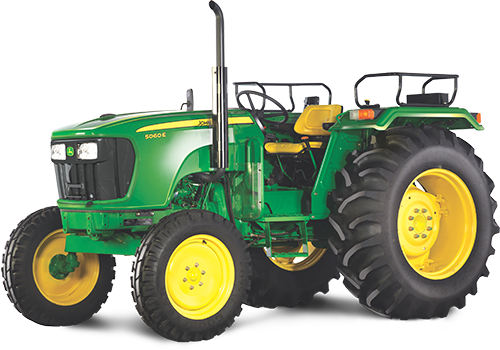

John Deere 5060E PR Tractor
The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get John Deere 5060E PR tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. John Deere 5060E PR tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.
If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. John Deere is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. John Deere 5060E PR has 60 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.
Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 51-60 HP Range in John Deere 5060E PR. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. John Deere 5060E PR tractor has 2WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.
John Deere 5060E PR tractor has NA CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor John Deere 5060E PR has 3 Cylinder number of cylinders. You will get NA PTO HP in the tractor John Deere 5060E PR.
This tractor provides a 12 Forward + 12 Reverse Top Shaft Synchromesh (TSS) gearbox.
So, if you are looking for the purchase of the tractor go through the official links, websites, and dealers and services like Khetigaadi that provide reliable information to the customers.
