John Deere 5036D Specifications

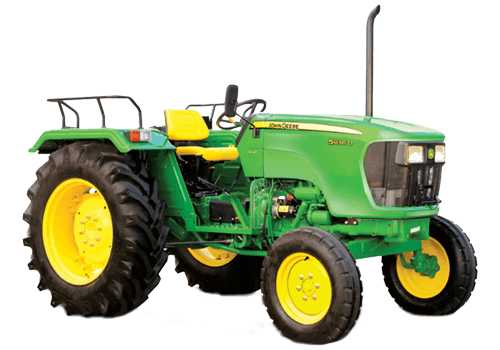

John Deere 5036D
2WD 6.1 Lakh - 6.35 LakhSpecifications
| John Deere 5036D Engine | |
|---|---|
| Engine type | John Deere 3029D, 36 HP (26.8 kW), 2100 RPM, 3 Cylinders, Coolant Cooled With Overflow Reservoir, Naturally Aspirated |
| Engine rated RPM | 2100 RPM |
| HP Category | 36 HP |
| No. of cylinder | 3 Cylinder |
| Air Cleaner / Filter | Dry Type, Dual Element |
| Cooling System | Coolant Cooled |
| Fuel type | Diesel |
| Starter Motor | 2.5 |
| Accessories | Ballast Weight, Canopy, Canopy Holder, Tow Hook, Draw bar, Wagon Hitch |
| John Deere 5036D Transmission | |
| Transmission type | Collarshift |
| No. of gears Forward | 8 Forward |
| No. of gears Reverse | 4 Reverse |
| Speed Forward - kmph | 3.13 - 34.18 Kmph |
| Speed Reverse - kmph | 4.10 - 14.87 Kmph |
| Brakes type | Oil Immersed Disc Brakes |
| clutch type | Single Clutch |
| Gear Box Type | 8 Forward + 4 Reverse, CollarShift |
| Front Axle | Adjustable |
| John Deere 5036D Power Take Off | |
| Max PTO (HP) | 30.6 HP |
| PTO RPM @ engine, rpm | 540 @ 2100 RPM |
| PTO Type | Independent, 6 Splines |
| John Deere 5036D Steering | |
| Steering type | Power Steering |
| John Deere 5036D Hydraulic | |
| Lifting Capacity Max. | 1600 Kg |
| 3 Point Linkage | Category II, Automatic Depth & Draft Control |
| John Deere 5036D Dimensions & Weight | |
| Ground Clearance | 390 Nm |
| Total Weight | 1760 Kg |
| Turning radius With Brake | 2900 Nm |
| Overall Length | 3400 mm |
| Overall Width | 1780 mm |
| Wheel Base | 1970 mm |
| John Deere 5036D Wheels & Tyres | |
| Tyre Size Front | 6.0 x 16 , 8 |
| Tyre Size Rear | 12.4 x 28 , 12 |
| John Deere 5036D Electrical | |
| Battery Capacity | 12 V 88 Ah AH |
| Alternator | 40 A |
Please read Safety Tips carefully before making any purchase
Know More
John Deere 5036D Tractor
The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get John Deere 5036D tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. John Deere 5036D tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.
If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. John Deere is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. John Deere 5036D has 36 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.
Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 31-40 HP Range in John Deere 5036D. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. John Deere 5036D tractor has 2WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.
John Deere 5036D tractor has 3 CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor John Deere 5036D has 8 Forward + 4 Reverse, CollarShift number of cylinders. You will get PTO HP in the tractor John Deere 5036D.
This tractor provides a 30.6 gearbox.
So, if you are looking for the tractor price of the tractor go through the official links, websites, and dealers and services like Khetigaadi that provide reliable information to the customers.
