John Deere 3036EN 4WD Specifications
Specifications
Engine
| Engine type | 36 HP, 2800 RPM, 3 Cylinder, Inline FIP, Coolant Cooled With Overflow Reservoir, Naturally Aspirated |
|---|---|
| Engine rated RPM | 2800 RPM |
| Engine HP | 36 HP |
| Displacement CC in | NA |
| No. of cylinder | 3 |
| Max Torque - Nm | NA |
| Air Cleaner / Filter | Dry Type, Dual Element |
| Cooling System | Coolant Cooled |
| Emission standard | NA |
| Fuel type | Diesel |
| Fuel Pump Type | Inline FIP |
| Power KW | NA |
| stroke in (mm) | NA |
| Bore in (mm) | NA |
| Fuel Pump Capacity | NA |
| Fuel Tank Capacity | 32 ltrs |
| Dry Weight kg | NA |
| Height | 1280 mm |
| Starter Motor | 1.2 kw |
| Accessories | Tool, Toplink, Canopy, Hook, Bumpher, Drawbar |
| Shifting Type | NA |
Transmission
| Transmission type | Sync Reverser |
|---|---|
| No. of gears Forward | 8 |
| No. of gears Reverse | 8 |
| Speed Forward - kmph | 1.6 - 19.5 kmph |
| Speed Reverse - kmph | 1.7 - 20.3 kmph |
| Brakes type | Oil Immersed Disc Brakes |
| clutch type | Single Clutch |
| Gear Box Type | 8 Forward + 8 Reverse FNR Sync Reverser / Collar Reverser |
| Front Axle | NA |
| Rear Axle | NA |
Power Take Off
| Max PTO (HP) | 30.6 PTO HP |
|---|---|
| PTO RPM @ engine, rpm | 540@2490ERPM/540@1925ERPM |
| PTO Type | Independent, 6 Splines |
| PTO Speed | NA |
Steering
| Steering Column | NA |
|---|---|
| Steering type | Power Steering |
Hydraulic
| Lifting Capacity Max. | 910 kg |
|---|---|
| 3 Point Linkage | NA |
| Spool Valve | NA |
| Type | NA |
Dimensions & Weight
| Ground Clearance | 285 mm |
|---|---|
| Total Weight | 1070 kg |
| Turning radius With Brake | 2300 mm |
| Turning radius Without Brake | 3000 mm |
| Overall Length | 2520 mm |
| Overall Width | 1060 mm |
| Wheel Base | 1574 mm |
Wheels & Tyres
| Tyre Size Front | 6 x 14 mm |
|---|---|
| Tyre Size Rear | 8.3 x 24 mm |
| Type Front | NA |
| Type Rear | NA |
Electrical
| Battery Capacity | 12 V 55 Ah |
|---|---|
| Alternator | 12 V 50 A |
| Battery Type | NA |
Know More

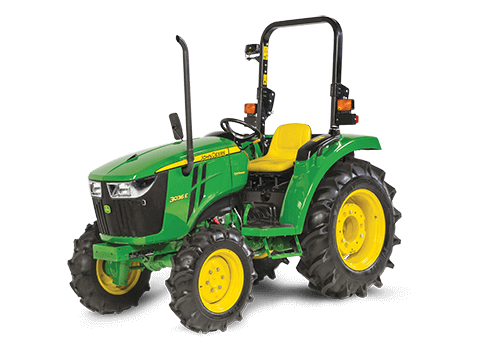

John Deere 3036EN 4WD Tractor
The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get John Deere 3036EN 4WD tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. John Deere 3036EN 4WD tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.
If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. John Deere is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. John Deere 3036EN 4WD has 36 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.
Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 31-40 HP Range in John Deere 3036EN 4WD. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. John Deere 3036EN 4WD tractor has 4WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.
John Deere 3036EN 4WD tractor has NA CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor John Deere 3036EN 4WD has 3 number of cylinders. You will get 30.6 PTO HP PTO HP in the tractor John Deere 3036EN 4WD.
This tractor provides a 8 Forward + 8 Reverse FNR Sync Reverser / Collar Reverser gearbox.
