ACE DI 350NG Specifications
ACE DI 350NG
2WD 5.9 Lakh - 6.2 LakhSpecifications
| ACE DI 350NG Engine | |
|---|---|
| Engine type | Direct Injection Water Cooled |
| Engine rated RPM | 1800 RPM |
| HP Category | 40 HP |
| Displacement CC in | 2858 CC |
| No. of cylinder | 3 Cylinder |
| Max Torque - Nm | 180 Nm |
| Air Cleaner / Filter | Dry Type |
| Cooling System | Water Cooled |
| Emission standard | Bharat 3A |
| Fuel type | High Speed Diesel |
| Fuel Pump Type | Inline |
| Power KW | 29.41 KW |
| stroke in (mm) | 110 mm |
| Bore in (mm) | 105 mm |
| Height | 2300 mm |
| Hydraulics | 1200 |
| ACE DI 350NG Transmission | |
| Transmission type | Sliding Mesh |
| No. of gears Forward | 8 Forward |
| No. of gears Reverse | 2 Reverse |
| Speed Forward - kmph | 2.4 - 28.72 Kmph |
| Speed Reverse - kmph | 2.96 - 11.69 Kmph |
| Brakes type | Dry Disk (Servicable)/Oil Immersed Brakes (Optional) |
| clutch type | Single Clutch |
| Gear Box Type | 8 Forward + 2 Reverse Sliding Mesh |
| Front Axle | Rigid |
| ACE DI 350NG Power Take Off | |
| Max PTO (HP) | 36.7 HP |
| PTO RPM @ engine, rpm | 540 RPM |
| PTO Type | Live -6 splines |
| ACE DI 350NG Steering | |
| Steering type | Mechanical/ Power steering |
| ACE DI 350NG Hydraulic | |
| Lifting Capacity Max. | 1200 Kg |
| 3 Point Linkage | Cat I / II |
| Type | Live |
| ACE DI 350NG Dimensions & Weight | |
| Ground Clearance | 420 Nm |
| Total Weight | 1930 Kg |
| Overall Length | 3660 mm |
| Overall Width | 1740 mm |
| Wheel Base | 1960 mm |
| ACE DI 350NG Wheels & Tyres | |
| Tyre Size Front | 6.00 x 16 |
| Tyre Size Rear | 13.6 x 28 |
| ACE DI 350NG Electrical | |
| Battery Capacity | 12 V 75 Ah AH |
| Alternator | 12 V 42 A |
Please read Safety Tips carefully before making any purchase
Know More

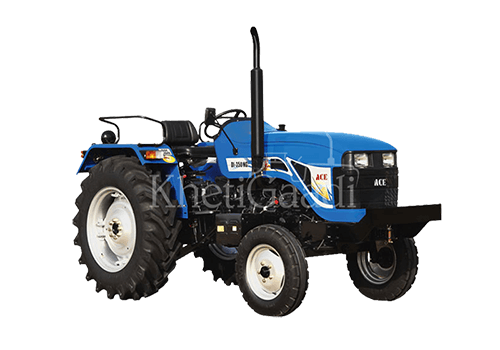

ACE DI 350NG Tractor
The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get ACE DI 350NG tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. ACE DI 350NG tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.
If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. ACE is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. ACE DI 350NG has 40 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.
Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 31-40 HP Range in ACE DI 350NG. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. ACE DI 350NG tractor has 2WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.
ACE DI 350NG tractor has 2858 CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor ACE DI 350NG has 3 number of cylinders. You will get 36.7 PTO HP in the tractor ACE DI 350NG.
This tractor provides a 8 Forward + 2 Reverse Sliding Mesh gearbox.
So, if you are looking for the tractor price of the tractor go through the official links, websites, and dealers and services like Khetigaadi that provide reliable information to the customers.
