ACE Chetak DI 65 Specifications
ACE Chetak DI 65
2WDSpecifications
| ACE Chetak DI 65 Engine | |
|---|---|
| Engine rated RPM | 2200 RPM |
| HP Category | 50 HP |
| Displacement CC in | 4088 CC |
| No. of cylinder | 4 Cylinder |
| Max Torque - Nm | 245 Nm |
| Air Cleaner / Filter | dry air |
| Cooling System | liquid-cooled |
| Emission standard | Bharat/TREM IV |
| Fuel type | diesel |
| Fuel Pump Type | inline mechanical fuel injection |
| Power KW | 37.3 KW |
| stroke in (mm) | 118 mm |
| Bore in (mm) | 105 mm |
| Fuel Pump Capacity | 65 Lit |
| Dry Weight kg | 2230 Kg |
| Height | 3916 mm |
| Starter Motor | NA |
| Accessories | MB Plough, Straw Ripper |
| Shifting Type | constant mesh |
| Hydraulics | ADDC (Automatic Depth & Draft Control) |
| Cylinder Capacity cc | 4088 CC |
| ACE Chetak DI 65 Transmission | |
| Transmission type | constant mesh |
| No. of gears Forward | 8 Forward |
| No. of gears Reverse | 2 Reverse |
| Speed Forward - kmph | 35.99 Kmph |
| Speed Reverse - kmph | 15.82 Kmph |
| Brakes type | oil-immersed |
| clutch type | dual |
| Gear Box Type | 8 forward and 2 reverse |
| Front Axle | NA |
| Rear Axle | NA |
| Linkage Category | Category II |
| ACE Chetak DI 65 Power Take Off | |
| Max PTO (HP) | 45.6 HP |
| PTO RPM @ engine, rpm | 540 RPM |
| PTO Type | 540 |
| PTO Speed | 540 |
| ACE Chetak DI 65 Steering | |
| Steering Column | smooth |
| Steering type | Power |
| ACE Chetak DI 65 Hydraulic | |
| Lifting Capacity Max. | 2000 Kg |
| 3 Point Linkage | NA |
| Spool Valve | auxiliary |
| Type | 2WD |
| Pump Type | inline mechanical fuel |
| Lower Link | Category II |
| ACE Chetak DI 65 Dimensions & Weight | |
| Ground Clearance | 400 Nm |
| Total Weight | 2230 Kg |
| Turning radius With Brake | 4600 Nm |
| Turning radius Without Brake | 4.6 mm |
| Overall Length | 3916 mm |
| Overall Width | 2206 mm |
| Wheel Base | 2206 mm |
| Height | 2245 |
| ACE Chetak DI 65 Wheels & Tyres | |
| Tyre Size Front | 7.5 × 16 |
| Tyre Size Rear | 14.9 × 28 |
| Type Front | NA |
| Type Rear | NA |
| Type | 2WD |
| Wheel Track Front | NA |
| Wheel Track Rear | NA |
| ACE Chetak DI 65 Electrical | |
| Battery Capacity | 12 V, 88 Ah AH |
| Alternator | 12 V |
| Battery Type | 12V, 88Ah |
| Horn | NA |
| Indicator & Gauge | NA |
| Electrical System | NA |
| Electrical Overview | NA |
| ACE Chetak DI 65 Others | |
| Blow Rating | NA |
| Tractor Detail | NA |
| Accessories | NA |
| Special Application | NA |
Please read Safety Tips carefully before making any purchase
Know More

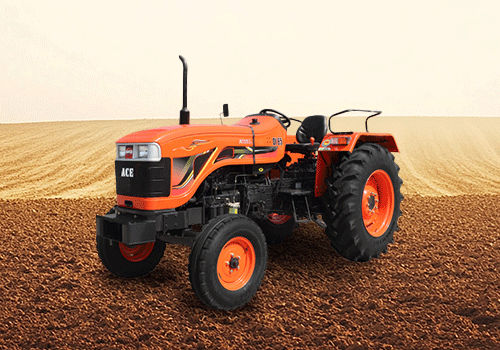

ACE Chetak DI 65 Tractor
The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get ACE Chetak DI 65 tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. ACE Chetak DI 65 tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.
If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. ACE is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. ACE Chetak DI 65 has 50 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.
Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 41-50 HP Range in ACE Chetak DI 65. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. ACE Chetak DI 65 tractor has 2WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.
ACE Chetak DI 65 tractor has 4088 CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor ACE Chetak DI 65 has 4 number of cylinders. You will get 8 forward and 2 reverse PTO HP in the tractor ACE Chetak DI 65.
This tractor provides a 45.6 gearbox.
So, if you are looking for the tractor price of the tractor go through the official links, websites, and dealers and services like Khetigaadi that provide reliable information to the customers.
