Specifications of VST Shakti Power Tiller 135 DI ULTRA

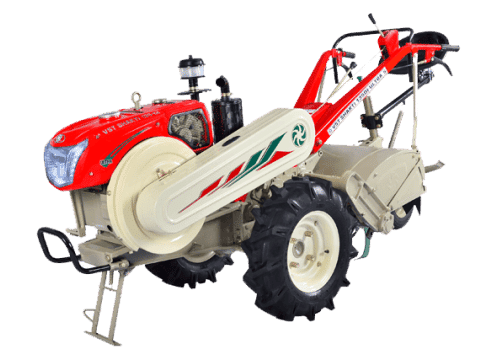

VST Shakti Power Tiller 135 DI ULTRA
Specifications of VST Shakti Power Tiller 135 DI ULTRA
| Air cleaner | Multistage, oil bath type |
|---|---|
| Brake | Hand operated internal expanding metallic shoe type |
| Clutch | Multiple plate dry disc type |
| Combustion Chamber | Direct injection (DI) |
| Cooling system | Condenser Type Thermo siphon cooling system |
| Dry weight | 125 Kgs |
| Engine type | Horizontal 4 stroke single cylinder water cooled diesel engine OHV |
| Forward Speed | 6 speeds |
| Fuel | High speed diesel |
| Fuel tank capacity | 11 ltrs |
| Governor System | Mechanical, Centrifugal type |
| Lighting System | 12 Volts/35 Watts |
| Max.HP as per IS 13539 1996 | 13.0 HP @ 2400 rpm |
| Maximum Torque | 4.2 kg-m/1600 rpm |
| Model | CT 85 |
| No of Tines | 18 |
| Nozzles | Multihole (5) |
| Oil Sump Capacity | 2.8 ltrs |
| Overall Dimensions (L x W x H) | 2370 x 850 x 1270 mm |
| Plough Depth | 220 mm (maximum) |
| Reverse Speed | 2 speeds |
| Rotary Speed | 2 speeds (optional 4 speeds) |
| SFC (Specific Fuel Cons) | 190g/hp/hr |
| Starting system | Hand cranking |
| Std. Pulley (DIA) | 100 mm/optional 120 mm |
| Tilling Depth | 150 mm (maximum) |
| Tilling Width | 600 mm (maximum) |
| Transmission type | Side drive rotary transmission |
| Type | Forced feed Type Trochoid pump |
| Weight (Engine & Transmission with Rotary) | 440 Kg |
