Specifications of Universal Heavy Duty Hydraulic Harrow BEHDHH-20

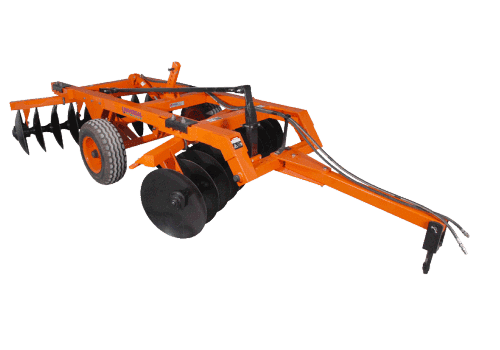

Universal Heavy Duty Hydraulic Harrow BEHDHH-20
Specifications of Universal Heavy Duty Hydraulic Harrow BEHDHH-20
| BEARING HUBS | 8 |
|---|---|
| Disc Diameter | 610, 660mm & thickness 4~6mm |
| Disc space | 228mm (9") |
| FRAME (mm) | Square tube 132X132X6mm & 100X100X6mm |
| Gang Angle Adjustment | Manual |
| GANG BOLT / AXLE (mm) | Solid Square 40mm (Rod) |
| No of Discs | 20 |
| Pull Type | Trailed |
| Required tractor HP | 80~90 |
| Type of Disc/Blade | Boron steel & High carbon steel |
| Tyre size | 10.0/75-15.3 & 12.5/80-15.3 (8 to 22 PR) |
| Weight(kg) | 1630 |
| Width of cut ( mm) | 2300 |
