Specifications of Universal Disc Harrow Mounted Offset BEMODH-14

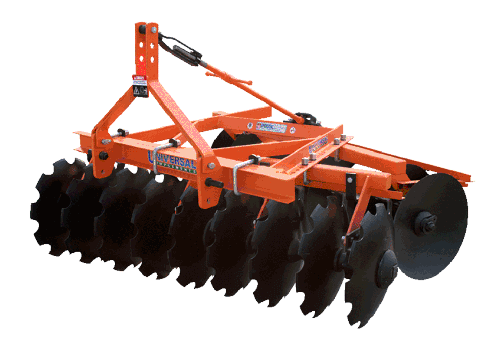

Universal Disc Harrow Mounted Offset BEMODH-14
Specifications of Universal Disc Harrow Mounted Offset BEMODH-14
| BEARING HUBS | 4 |
|---|---|
| Disc Diameter | 460, 508 & 560 Dia. & thickness 3~5mm |
| Disc space | 228mm (9") |
| FRAME (mm) | 100X50 Channel, 75X10 Angle & 72X72X5 Square tube |
| Gang Angle Adjustment | Manual |
| GANG BOLT / AXLE (mm) | Solid Square 32mm (Rod) |
| No of Discs | 14 |
| Pull Type | Mounted |
| Required tractor HP | 40~50 |
| Type of Disc/Blade | Notched disc in front gang & Plain disc in rear gang (Boron & High carbon steel ) |
| Weight(kg) | 430 |
| Width of cut ( mm) | 1635 |
