Specifications of Sugarcane Harvester Austoft 4000 Double Plus

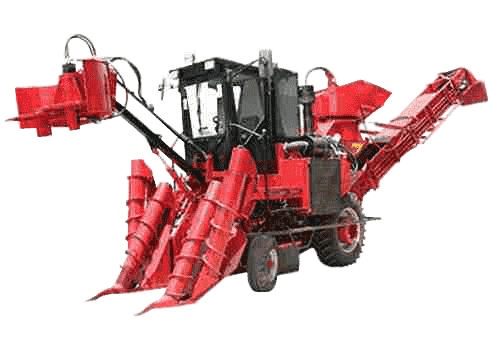

Sugarcane Harvester Austoft 4000 Double Plus
Specifications of Sugarcane Harvester Austoft 4000 Double Plus
| Base Cutter Drive | Hydraulic and Reversible |
|---|---|
| Brake type | Hydraulically actuated, disc type (independent) Manual parking brake |
| Deflector Plate | Adjustable |
| Distance between centre of discs | 495 mm |
| Distance between the points | 1,100 mm |
| Extractor Hood | Directional |
| Extractor No of blades | 3 |
| Fuel tank capacity | 210 L |
| Height adjustment | Hydraulic |
| Height variation | 1,050 mm - 3,000 mm |
| Hydraulic System | 130 L |
| Knockdown Roller Angle (â°) | 51 Degree |
| Knockdown Roller Height | Adjustable |
| Lower Section | Hardened |
| Max Speed | 20 |
| No of Blades | 8, Four Side Sharpened |
| No of Discs | 2, identical & reversible |
| No of Rollers | 11 |
| No of Rollers on Roller Train | 8 |
| No of cylinder | 6 |
| No of knives per drum | 3 |
| Power/Engine HP | 174 HP |
| Slewing Angle | 170 Degree |
| Spiral angle (â°) | 30 Degrees |
| Transmission type | Hydrostatic |
| Upper Rollers | Floating |
