Specifications of New Hind Self Propelled Combine Harvester 999

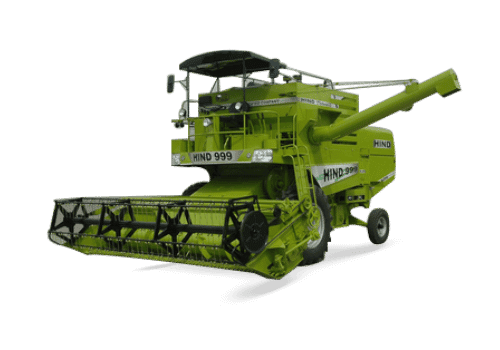

New Hind Self Propelled Combine Harvester 999
Specifications of New Hind Self Propelled Combine Harvester 999
| Alternator Output | 24 volt |
|---|---|
| Battery (kg/hm2) | 12 v 100 AH |
| Cleaning Fan (Blower) Dia (mm) | 575 |
| Cleaning Fan Effective width (mm) | 1260 |
| Concave No. of Bars | Wheat - 12, Paddy - 9 |
| Detail of Knife Drive | End of Cutter Bar is connected with a Crank Arm to the Pitman Shaft and oscillated by a Crank Arm. |
| Effective Cutter Bar width. (mm) | 4280 |
| Effective width (mm) | 1260 |
| Fuel Pump Make | MICO BOSCH |
| Fuel Used | Diesel |
| Fuel tank capacity | 325 Ltrs. |
| Grain Tank Location | On Top of combine harvester, behind operator's seat. |
| Horse Power | 101 (HP) |
| Knife Safety Arrangment | Knife Guard Provided. |
| Knife Speed Corresponding to 1700 rpm of engine (m/sec.) | 1.2 |
| Knife Stroke (mm) | 75 |
| Length of rasp bar/peg bar (mm) | Wheat,Paddy - 1256 |
| Make | Ashok Leyland |
| Mass Basis (kg) | 1850 (with paddy) |
| Maximum Speed at no load (rpm) | 2200 |
| Model | H6ETIC3D (Turbo Charged Inter Cooled) Bharat Stage III (CEV) |
| NO. & Type of Knife Blades | 59, Serrated. |
| NO. of rasp on each bar | Wheat - 94 |
| No of cylinder | 6 |
| No. & Spacing of Guards | 58 (29 Pairs) 75 mm apart. |
| No. & Type of Blades | 4, Rectangular Shape |
| No. and type of bearings | 4 sealed ball bearing |
| No. of Bars | 8 |
| No. of Sieves Bottom | One |
| No. of Top Sieves | Two |
| No. of rasp/ 100 mm | Wheat - 8 |
| No. pegs/knife blade and their spacing on each bar | Paddy - 17, 75 mm apart |
| Outside Dia (mm) | Wheat - 574, Paddy - 428 |
| Overall Dimensions (mm) | Working, Transportation |
| Overall Height | Working - 3925, Transportation - 3925 |
| Overall Length | Working - 8165, Transportation - 12115 (with header) |
| Overall Width | Working - 4670, Transportation - 3070 |
| Overall width of Concave (mm) | 1285 |
| Peripheral Speed (m/sec.) Maximum | Wheat - 34.2, Paddy - 25.6 |
| Peripheral Speed (m/sec.) Minimum | Wheat - 18.7, Paddy - 14.0 |
| Range of Speed Corresponding to 1750 rpm of Engine (rpm): Maximum | Wheat - 1140, Paddy - 1140 |
| Range of Speed Corresponding to 1750 rpm of Engine (rpm): Minimum | Wheat - 625 Paddy - 625 |
| Rated Speed for fields (rpm) | 1700 |
| Size of Auger (mm) | Dia: 202 Width: 4255 |
| Speed corresponding to 1700 rpm of Engine (rpm) | 1036 |
| Speed of the Auger corresponding to 1700 rpm of engine (rpm) | 566 |
| Straw Walker No.s | 6 |
| Straw Walkers Type | Closed rack type. Serrated side edges with 6 steps on each straw walker. |
| Strokes Per Minute | 976 |
| System Voltage | 24 v negative ground |
| Threshing Drum Width | Wheat - 1210, Paddy - 1205 |
| Top / Bottom Sieves - Width (mm) | Wheat - 1215, Paddy - 1215 |
| Top / Bottom Sieves -Length (mm) | Wheat - 1445, Paddy - 810 |
| Top/Bottom Sieves Type | Open Lip frog mouse type |
| Type | Self Propelled, Four Stroke, Water Cooled, Direct Injection, Diesel Engine, Rasp Bar, Peg Tooth |
| Type of Concave | Wheat - Open Flat Bars, Paddy - Open Flat Bars with peg in 3 rows. |
| Type of Crop Conveyor | Auger with Retractable Fingers |
| Type of Crop Dividers | Shoe |
| Volume Basis (m3) | 2.9 |
| Weight(kg) | 8500 Kg. (Approx) |
