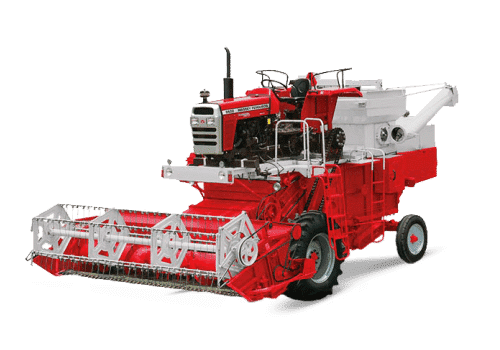

Specifications of Massey Furguson Combine Harvester MF 9500 Super Shuttel Series
Massey Furguson Combine Harvester MF 9500 Super Shuttel Series
Specifications of Massey Furguson Combine Harvester MF 9500 Super Shuttel Series
| Additional features | Asli side shift, Auxiliary pump, Front weights, Spool valve, Full platform |
|---|---|
| Brake | Oil immersed brake |
| Clutch Type | Dual |
| Cubic Capacity/HP | 2700 |
| Electricals | 12 V 75 Ah Battery, 12 V 36 A Alternator |
| Forward speed @ rated RPM | 31.3 kmph |
| Fuel injection pump | Rotary |
| Fuel tank capacity | 60 |
| Ground Clearance | 420 |
| Lifting capacity | 2050 kgf |
| Make | SIMPSONS SJ327E TIII A |
| Minimum turning circle radius with brakes (mm) | 3420 |
| No of cylinder | 3 |
| Number of speeds | 8 Forward + 8 Reverse |
| Overall Height | 2316 |
| Overall Length | 3745 |
| Overall Width | 1878 |
| P.T.O Speed (RPM) | 540 RPM @ 1790 ERPM |
| PTO Type | RPTO |
| Required tractor HP | 58 |
| Steering Type | Power steering |
| Three point linkage and controls | Draft, position and response control. Links fitted with Cat 1 and Cat 2 balls (Combi Ball) |
| Transmission type | Comfimesh |
| Tyre Dimensions | 7.50 x 16 Front, 16.9 x 28 Rear |
| Weight(kg) | 2330 |
| wheel base(mm) | 1965 |
