Specifications of Kartar Tractor Combined Harvester

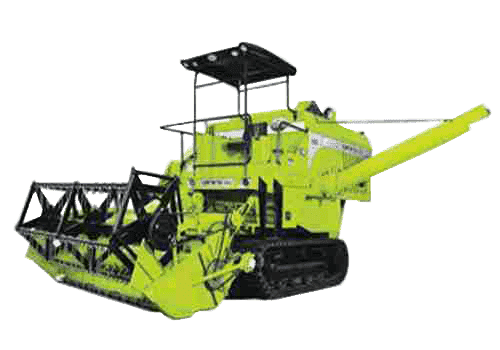

Kartar Tractor Combined Harvester
Specifications of Kartar Tractor Combined Harvester
| Diameter of Thresher Drum | 595 mm |
|---|---|
| Blower | 550 mm dia x 1100 mm width - 4 Blade |
| Cutter Bar Assy | Effective width 3600 mm Working width 3900 mm |
| Driving | V belt with Pulley arrangement |
| Model | K 350 OT |
| No of straw walker | 5 (184 mm x 3810 mm) |
| Number of Blower Blades | 4 |
| Overall dimension while harvesters | L 8250 mm x W 3900 mm x H 3480 mm |
| Overall dimension while on road | L10900 mm x Wt 3990 mm |
| Threshing Drum | 595 mm Dia 1045 mm width |
| Threshing Drum Width | 1045 mm |
| Type of Prime Mover | Suitable Tractor to be fitted |
| Type size Drive Wheel Streeing Wheel | 16.9 x 28 (12 PR) 2 Nos 6.50 x 20 (8 PR) 2 Nos |
