HMT

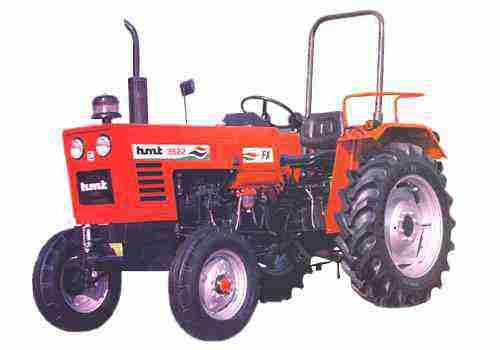

HMT 3522 FX
-HMT-3522-FX.jpg)
HMT 3522 FX
35 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | Direct Fuel Injection, Four-Stroke, Water Cooled Diesel Engine | ||||
| Engine rated RPM | 2100 RPM | ||||
| HP Category | 35 HP | ||||
| Displacement CC in | 2340 CC | ||||
| No. of cylinder | 3 Cylinder | ||||
| Air Cleaner / Filter | Oil Bath type having a Cyclone Pre-Cleaner & Transparent Dust Collector. | ||||
| Cooling System | Forced water circulation with thermostat. | ||||
| stroke in (mm) | 110 mm | ||||
| Bore in (mm) | 95 mm | ||||
| Hydraulics | 19 | ||||
| No. of gears Forward | 8 Forward | ||||
| No. of gears Reverse | 2 Reverse | ||||
| Brakes type | Hydraulically controlled, internal expanding shoes | ||||
| clutch type | Dual purpose clutch comprised of two dry disc plates | ||||
| PTO RPM @ engine, rpm | rpm 545 at 1953 engine rpm RPM | ||||
| Steering type | Re-circulating Ball Type | ||||
| Hydraulic | |||||
| Lifting Capacity Max. | 1200 Kg | ||||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.00-16, 8 PR | ||||
| Tyre Size Rear | 12.4/11-28, (10 or 12 PR) | ||||
| Electrical | |||||
| Battery Capacity | 12V,88Ah AH | ||||
