एसीई डीआय ७५७५ तपशील
एसीई डीआय ७५७५
2WD 9.10 Lakh - 9.40 Lakhतपशील
| ACE DI 7575 Engine | |
|---|---|
| Engine rated RPM | 2200 RPM |
| HP Category | 75 HP |
| Displacement CC in | 4088 CC |
| No. of cylinder | 4 Cylinder |
| Max Torque - Nm | 305 Nm |
| Air Cleaner / Filter | dry air |
| Cooling System | liquid-cooled |
| Emission standard | Bharat (Trem) Stage III |
| Fuel type | diesel |
| Fuel Pump Type | inline |
| Power KW | 55.95 KW |
| stroke in (mm) | 118 mm |
| Bore in (mm) | 105 mm |
| Fuel Pump Capacity | 65 Lit |
| Dry Weight kg | 2400 Kg |
| Height | 2340 mm |
| Starter Motor | 12 V |
| Accessories | Top Link, Tool Kit ,Drawbar , Bumper |
| Shifting Type | sliding mesh transmission |
| Hydraulics | ADDC (Automatic Depth & Draft Control) |
| Cylinder Capacity cc | 4088 CC |
| ACE DI 7575 Transmission | |
| Transmission type | sliding mesh transmission |
| No. of gears Forward | 8 Forward |
| No. of gears Reverse | 2 Reverse |
| Speed Forward - kmph | 3.01 Kmph |
| Speed Reverse - kmph | 2.98 Kmph |
| Brakes type | oil-immersed |
| clutch type | dual |
| Gear Box Type | 8 forward + 2 reverse |
| Front Axle | NA |
| Rear Axle | NA |
| Linkage Category | Category-II |
| ACE DI 7575 Power Take Off | |
| Max PTO (HP) | 64 HP |
| PTO RPM @ engine, rpm | 2200 RPM |
| PTO Type | 6-spline |
| PTO Speed | 540 |
| ACE DI 7575 Steering | |
| Steering Column | power |
| Steering type | NA |
| ACE DI 7575 Hydraulic | |
| Lifting Capacity Max. | 2000 Kg |
| 3 Point Linkage | Category-II |
| Spool Valve | dual auxiliary |
| Type | 2WD |
| Pump Type | inline fuel |
| Lower Link | Category II |
| ACE DI 7575 Dimensions & Weight | |
| Ground Clearance | 420 Nm |
| Total Weight | 2600 Kg |
| Turning radius With Brake | 4000 Nm |
| Turning radius Without Brake | 4.2 mm |
| Overall Length | 3845 mm |
| Overall Width | 1950 mm |
| Wheel Base | 2130 mm |
| Height | 2340 |
| ACE DI 7575 Wheels & Tyres | |
| Tyre Size Front | 7.50 × 16 |
| Tyre Size Rear | 16.9 × 30 |
| Type Front | NA |
| Type Rear | NA |
| Type | 2WD |
| Wheel Track Front | 1300 – 1500 |
| Wheel Track Rear | 1400 – 1800 |
| ACE DI 7575 Electrical | |
| Battery Capacity | 12 V, 110 Ah AH |
| Alternator | 12 V, 42 Amp |
| Battery Type | 12V, 110Ah |
| Horn | NA |
| Indicator & Gauge | NA |
| Electrical System | NA |
| Electrical Overview | NA |
| ACE DI 7575 Others | |
| Blow Rating | NA |
| Tractor Detail | NA |
| Accessories | NA |
| Special Application | NA |
कृपया वाचा सुरक्षितता टिप कोणतीही खरेदी करण्यापूर्वी काळजीपूर्वक
अधिक जाणून घ्या

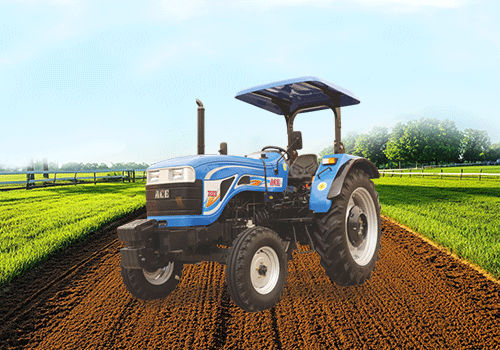

ACE DI 7575 Tractor
The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get ACE DI 7575 tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. ACE DI 7575 tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.
If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. ACE is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. ACE DI 7575 has 75 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.
Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 71-80 HP Range in ACE DI 7575. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. ACE DI 7575 tractor has 2WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.
ACE DI 7575 tractor has 4088 CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor ACE DI 7575 has 4 number of cylinders. You will get 8 forward + 2 reverse PTO HP in the tractor ACE DI 7575.
This tractor provides a 64 gearbox.
So, if you are looking for the tractor price of the tractor go through the official links, websites, and dealers and services like Khetigaadi that provide reliable information to the customers.
