New Holland
New Holland Excel 4710 RED 4WD and Farmtrac 45 Ultramaxx

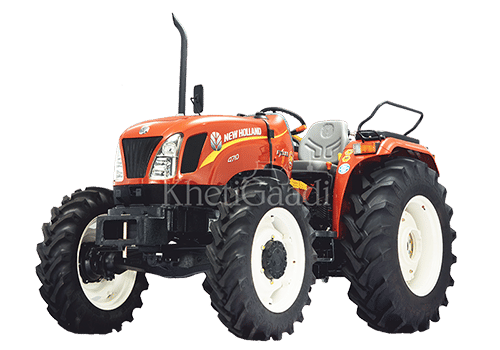

New Holland Excel 4710 RED 4WD
47 HP
7.5 Lakh - 8.9 Lakh
|
Farmtrac 45 Ultramaxx
47 HP
8.8 Lakh - 9.1 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | T IIIA SJ 327 | N/A | |||
| Engine rated RPM | 2250 RPM | 2000 RPM | |||
| HP Category | 47 HP | 48 HP | |||
| Displacement CC in | 2700 CC | 2000 CC | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Max Torque - Nm | 1400 Nm | N/A | |||
| Air Cleaner / Filter | Oil Bath With Pre Cleaner | N/A | |||
| Fuel type | Diesel | Diesel | |||
| Hydraulics | 1500 | ADDC - 1600 | |||
| Transmission | |||||
| Transmission type | Fully Constantmesh AFD | Synchro Shuttle | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 2 Reverse | 8 Reverse | |||
| Speed Forward - kmph | 2.79 - 31.0 Kmph | 2.6-29.7-13.6x28 2.7-31.1-14.9x28 Kmph | |||
| Speed Reverse - kmph | 3.42 - 12.43 Kmph | 2.6-29.6-13.6x28 2.7-31-14.9x28 Kmph | |||
| Brakes type | Oil Immersed Multi Disc Brakes | Multi Plate Oil Immersed Brakes | |||
| clutch type | Single/Double Clutch | Independent Clutch | |||
| Gear Box Type | N/A | 8F+8R with Fwd/Rev Synchro Shuttle | |||
| Front Axle | N/A | Mud and water sealed 4WD Axle | |||
| Rear Axle | N/A | Epicyclic Reduction | |||
| Power Take Off | |||||
| Max PTO (HP) | 43 HP | N/A | |||
| PTO RPM @ engine, rpm | N/A | 540 RPM @1728 and 1251 RPM | |||
| PTO Type | 540 | 540 and 540 E | |||
| Steering | |||||
| Steering type | Mechanical/Power Steering | Balanced Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1500 Kg | 1600 Kg | |||
| 3 Point Linkage | Category I & II, Automatic Depth & Draft Control | N/A | |||
| Spool Valve | N/A | Double Acting Directionla Control Valve | |||
| Dimensions & Weight | |||||
| Ground Clearance | 382 Nm | 460 Nm | |||
| Total Weight | 2015 Kg | 2200 (Unballasted) Kg | |||
| Turning radius With Brake | 2960 Nm | N/A | |||
| Overall Length | 3400 mm | 3270 mm | |||
| Overall Width | 1740 mm | 1810 mm | |||
| Wheel Base | 1965 mm | 1880 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.0 x 16 | 8 x 18/9.5 x 18 | |||
| Tyre Size Rear | 13.6 x 28 | 13.6 x 28/14.9 x 28 | |||
| Electrical | |||||
| Battery Capacity | 88 Ah AH | N/A | |||
| Alternator | 23 A | N/A | |||
| Others | |||||
